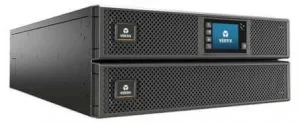

Vertiv Liebert GXT5 3kVA-20kVA UPS is an online, double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower design. This single-phase UPS series provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets. The GXT5 series offers unparalleled efficiency of up to 98% in active ECO Mode and up to 95% in on-line mode.
The Liebert GXT5 UPS can be managed remotely and has individually controlled sockets for improved security and remote reset and on/off capabilities. When used together with the free Trellis Power Insight, users can monitor and manage up to 100 supported Vertiv devices.
Vertiv Liebert GXT5 3kVA-20kVA Features
- Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
- High output power factor, up to unity, provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
- Integrated serial connection for advanced console server integration or direct terminal control of the UPS
- Energy Star 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
- SNMP network communications with optional RDU101 NIC and free Trellis™ Power Insight
- Full-color graphic LCD with gravity sensing orientation
- Scalable power with auto-detection of external battery cabinets
- Maintenance bypass capability standard on all 5kVA and larger systems
- Auto-detection of external battery cabinets for scalable power
- Three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange to support maximum availability
- Automatic internal bypass
- External battery cabinets with auto-detection
- Output Distribution Options w/interchangable POD’s
Vertiv Liebert GXT5 Specifications
| Models | Power Rating | Input Voltage | Details | Input | Output | Height | Width | Depth |
| GXT5-3KL620RT2UXL | 3,000VA/ 2,700W | 208V | L6-20P | (2) L6-15R, (2) L6-20R | 3.4 in | 16.9 in | 21.3 in | |
| GXT5-3KL630RT2UXL | 3,000VA/ 3,000W | 208V | L6-30P | (2) L6-15R, (2) L6-30R | 3.4 in | 16.9 in | 21.3 in | |
| GXT5-5000MVRT4UXLN | 5,000VA/ 5,000W | 208V/120V | Network Card, Maintenance Bypass | Hardwired | Hardwired | 6.8 in | 16.9 in | 25.6 in |
| GXT5-5000HVRT5UXLN | 5,000VA/ 5,000W | 208V | Network Card, Maintenance Bypass | Hardwired | (2) L6-20R, (2) L6-30R | 8.5 in | 16.9 in | 24.8 in |
| GXT5-6000MVRT4UXLN | 6,000VA/ 6,000W | 208V/120V | Network Card, Maintenance Bypass | Hardwired | Hardwired | 6.8 in | 16.9 in | 25.6 in |
| GXT5-6KL630RT5UXLN | 4,900VA/ 4,600W | 208V | Network Card, Maintenance Bypass | L6-30P | (2) L6-20R, (2) L6-30R | 8.5 in | 16.9 in | 23.6 in |
| GXT5-8000MVRT6UXLN | 8,000VA/ 8,000W | 208V/120V | Network Card, Maintenance Bypass | Hardwired | Hardwired | 10.2 in | 16.9 in | 25.6 in |
| GXT5-8000HVRT5UXLN | 8,000VA/ 8,000W | 208V | Network Card, Maintenance Bypass | Hardwired | (2) L6-20R, (2) L6-30R | 8.5 in | 16.9 in | 24.8 in |
| GXT5-10KMVRT6UXLN | 10,000VA/ 10,000W | 208V/120V | Network Card, Maintenance Bypass | Hardwired | Hardwired | 10.2 in | 16.9 in | 25.6 in |
| GXT5-10KHVRT5UXLN | 10,000VA/ 10,000W | 208V | Network Card, Maintenance Bypass | Hardwired | (2) L6-20R, (2) L6-30R | 8.5 in | 16.9 in | 24.8 in |
| GXT5-15MVRT11UXLN | 15,000VA/ 15,000W | 208V/120V | Network Card | Hardwired | Hardwired | 19.0 in | 16.9 in | 26.7 in |
| GXT5-20KMVRT11UXLN | 20,000VA/ 20,000W | 208V/220V/240V | Network Card | Hardwired | Hardwired | 19.0 in | 16.9 in | 26.7 in |
For more in-depth specifications, see the data sheet.
