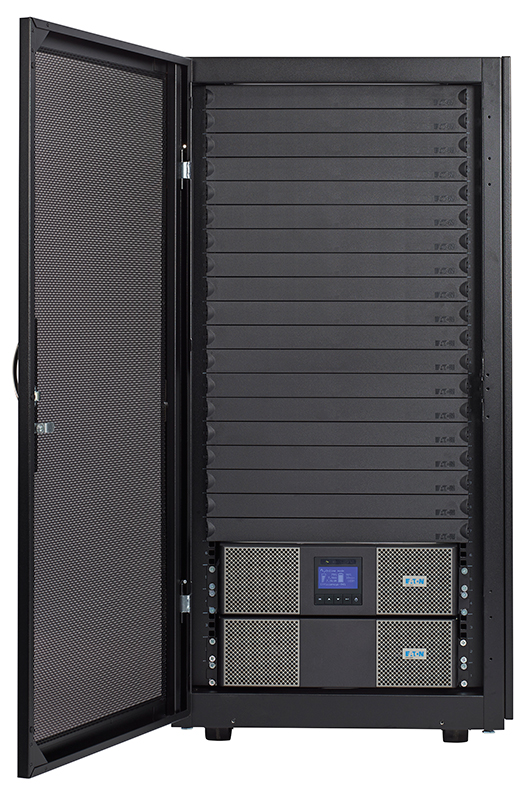

Eaton RACKPACKIT

Delivering a premium, all-in-one power management solution for IT deployments, the Eaton RACKPACKIT enables effective organization, protection and management for a variety of IT environments. The RACKPACKIT comes pre-configured with a UPS, power distribution and management solutions. The Eaton pre-configured RACKPACKIT solution minimizes deployment time and maximizes protection by providing an all-in-one solution.

RACKPACKIT Features

  • 9PX 6kVA UPS (ENERGY STAR® qualified) provides more real power (watts) to protect more equipment and leave room for expanding IT systems
  • 9PX Extended battery module provides up to 16 minutes of runtime at full load
  • ePDU G3 Metered Input rack PDUs feature +/-1% billing grade accuracy, an advanced LCD pixel display and a hot-swap meter
  • Vantage S2 enclosure supports a weight capacity up to 2,000 pounds (includes castors)
  • Intelligent Power Manager software silver edition fully integrates with leading hypervisors to provide continuous uptime of hosts and virtual machines
  • Environmental monitoring probe delivers up-to-date temperature and humidity readings within the rack
  • Tool-less blanking panels allow for quick installation and reduces re-circulation of hot exhaust air to the equipment inlet
  • Cable management (D-rings and velcro ties) maximizes airflow and organization

RACKPACKIT Specifications

Power Rating6kVA
Voltage208V
Frequency50/60 Hz
ConfigurationRack
U Height25, 30 or 42
Width24″
Depth40″
Weight Capacity2,000 lbs

RACKPACKIT Configurations

Part NumberRack UnitsUPS protection VA/WattsPDU receptacle output
ETN-RP25UP25U6000 / 5400(24) C13, (4) C19
ETN-RP30UP30U6000 / 5400(24) C13, (4) C19
ETN-RP42UP42U6000 / 5400(72) C13, (12) C19


For more information about Eaton RACKPACKIT,
call 86 21 5859 8677 or email sales@alphaenertech.com.
