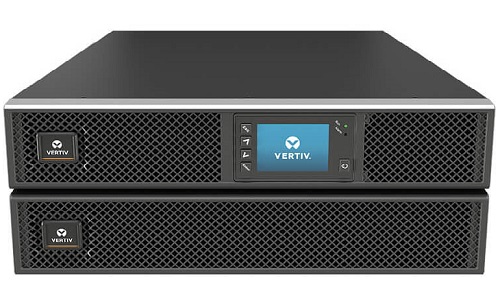

The Vertiv Liebert GXT5-10KMVRT6UXLN UPS offers premium power outage protection and continuous power conditioning in a flexible rack/tower design. It is ideally suited for both centralized and edge network applications. This single-phase UPS has user selectable output in 208V and 120V, 4-wire system L-L-N-G, standard POD hardwire in/out with maintenance bypass and optional PODs available. A factory pre-installed Vertiv RDU101 SNMP/Webcard provides remote, SNMP and web UI-based monitoring.
Vertiv Liebert GXT5-10KMVRT6UXLN Features
- Three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange to support maximum availability
- High power factor operation up to unity, allows for more connected devices
- Energy Star 2.0 certification; high efficiency in online (95%) and Active ECO (98%) modes
- Enhanced local and remote management capabilities for intelligent critical infrastructure management
- SNMP network communications with Vertiv RDU101 NIC (optional for 3kVA units; factory pre-installed for 5-10kVA units) streamlines installation and maintenance
- Auto-detection of external battery cabinets for scalable power
Vertiv Liebert GXT5-10KMVRT6UXLN Specifications
Power Rating: 10,000 VA / 10,000 W
Input Voltage: Typical: 208VAC / Range: 176-280VAC
Output Voltage: 208/120VAC (user-configurable)
Efficiency: Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring: Hardwired in/out; Optional PODs available
Interface Options: Factory pre-installed Vertiv RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector
Protocols: SNMP and web management enabled with factory pre-installed Vertiv RDU101 communications card; serial connection for out-of-band management
Control Panel: Full-color graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
Operating Temperature: +32 to +104 °F (0 to 40 °C)
Listings: ENERGY STAR 2.0 certified, UL1778, c-UL listed, RoHS2, REACH
Topology: On-line double conversion UPS; flexible rack/tower form factor
