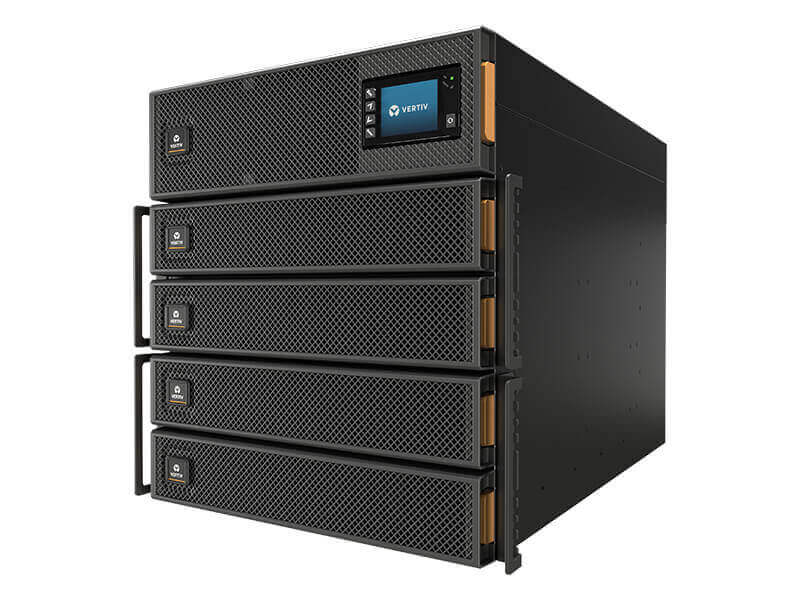

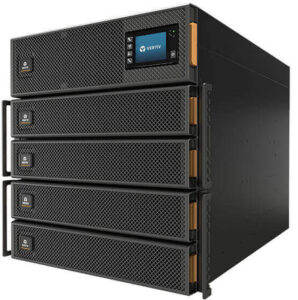

Vertiv Liebert GXT5-20KMVRT11UXLN

The Vertiv Liebert GXT5-20KMVRT11UXLN UPS offers premium power outage protection and continuous power conditioning in a flexible rack/tower design. It is ideal for centralized and edge network applications. This single-phase UPS has 3-wire system L-L-G, standard POD hardwire in/out with L6-20R and L6-30R outputs and with integrated maintenance bypass. Optional PODs are available. A factory pre-installed Vertiv RDU101 SNMP/Webcard provides remote, SNMP and web UI-based monitoring.

The GXT5-20KMVRT11UXLN is easy to deploy. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while supporting sustainability.

Vertiv Liebert GXT5-20KMVRT11UXL Features

• Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
• High output power factor, up to unity, provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
• Integrated serial connection for advanced console server integration or direct terminal control of the UPS
• Energy Star 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
• SNMP network communications with optional RDU101 NIC and free Trellis™ Power Insight
• Full-color graphic LCD with gravity sensing orientation
• Scalable power with auto-detection of external battery cabinets
• Maintenance bypass capability standard on all 5kVA and larger systems
• Auto-detection of external battery cabinets for scalable power
• Three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange to support maximum availability
• Automatic internal bypass
• External battery cabinets with auto-detection
• Output Distribution Options w/interchangable POD’s
•

GXT5-20KMVRT11UXL Specifications

Runtime Full/half: 4.5 min/13 min
Main Input Voltage: 208V
Main Output Voltage: 208/120VAC
Power: 20kW/20kVA
Number of rack units: 11U
Battery Type: VRLA
Network management card: Included
Dimensions: 19.0 in x 16.9 in x 26.7 in
Net Weight: 396.6 lbs.
Mounting Mode: Rack
USB compatible: Yes
