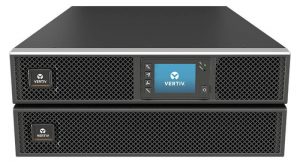

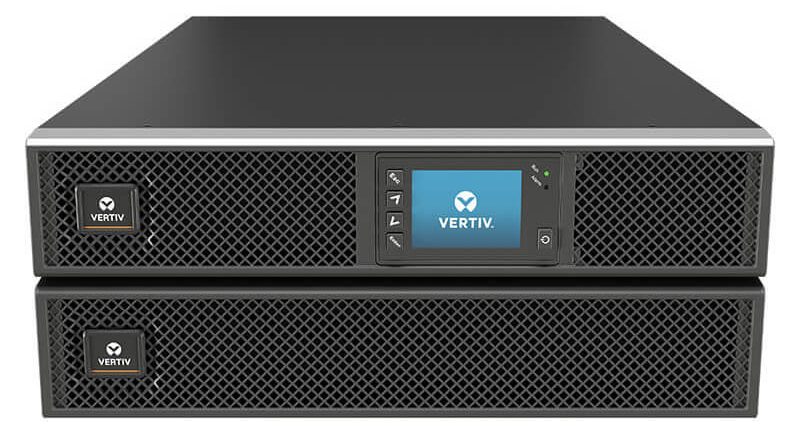

Vertiv Liebert GXT5-8000HVRT5UXLN

Vertiv Liebert GXT5-8000HVRT5UXLN UPS offers premium power outage protection and continuous power conditioning in a flexible rack/tower design. It is ideal for centralized and edge network applications. This single-phase UPS has 3-wire system L-L-G, standard POD hardwire in/out with L6-20R and L6-30R outputs and with integrated maintenance bypass. Optional PODs are available. A factory pre-installed Vertiv RDU101 SNMP/Webcard provides remote, SNMP and web UI-based monitoring.

The GXT5-8000HVRT5UXLN’s rack/tower design is easy to deploy and offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure.

Vertiv Liebert GXT5-8000HVRT5UXLN Features

• Three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange to support maximum availability
• High power factor operation up to unity, allows for more connected devices
• Energy Star® 2.0 certification; high efficiency in online (95%) and Active ECO (98%) modes
• Enhanced local and remote management capabilities for intelligent critical infrastructure management
• SNMP network communications with Vertiv™ RDU101 NIC (optional for 3kVA units; factory pre-installed for 5-10kVA units) streamlines installation and maintenance
• Auto-detection of external battery cabinets for scalable power
• Full-color graphic LCD with gravity sensing orientation
   Programmable outlets for power cycling hung equipment and optimum battery usage
• The Vertiv™ RDU101 network interface card (NIC) for SNMP communications and environmental sensor support, included and factory pre-installed on 5-10kVA models
• Maintenance bypass capability standard on all 5kVA and larger systems
• Hot-swappable internal battery and scalable power with auto-detection of external battery cabinets


Vertiv Liebert GXT5-8000HVRT5UXLN Specifications

Power Rating: 8,000 VA / 8,000 W
Input Voltage: Typical: 208VAC / Range: 176-288VAC
Output Voltage: 200/208/220/230/240 VAC (user-configurable)
Efficiency: Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring: Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R
Operating Temperature: +32 to +104°F (0 to 40°C)
