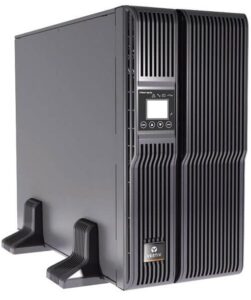

The Liebert GXT4-6000RT208 offers true on-line power in a convenient rack configuration. Liebert GXT4 UPS 5 and 6kVA models are true on-line UPS systems that provide internal batteries and dual output voltage. They are an ideal fit for applications where the power requirements are demanding such as network closets or small equipment racks.
For installation flexibility, the Liebert GXT4 UPS 5 and 6kVA models allow you to choose from several different wiring configurations made possible by the use of removable power distribution boxes (PODs) that simply plug into the rear of the UPS. The standard box provides terminal blocks for hardwired input and output connections. An optional hardwire version that includes a maintenance bypass is also available. When the ease of plug-and-play power connections is desired, optional versions of the power distribution box convert Liebert GXT4 UPS 5 and 6kVA units to a cord-type input with receptacles for output distribution, and also offers maintenance bypass capability that allows hot-swapping of the entire UPS without interruption of power to the connected load. The UPS has as adaptable dual inverter design, capable of providing output voltages of 240/120, 208/120, 230/115, 220/110, or 200/100 and an output power factor of 0.8.
Liebert GXT4-6000RT208 Benefits
- Pain-free multi-site rollout management
- Frees up time-strapped IT staff by managing and tracking UPS health, maintenance and service.
- Reduces the worry of critical equipment downtime.
- Ensures rapid recovery in the event of failure within 24-48 hours.
- Frees you from the responsibility of handling and documenting the disposal of hazardous materials, like batteries.
Liebert GXT4-6000RT208 Specifications
Power Rating: 4800W/6000VA
Dimensions: 26.1 inches D x 16.9 inches W x 6.8 inches H
Weight: 131.8 lbs.
Nominal Operating Frequency: 50 or 60Hz (Factory Default is 60Hz)nominal; variable based on output load
Factory Default VAC: 120/208VAC at 120 degrees
Factory Default L1-N, L2-N VAC: 120 VAC nominal
Input Frequency w/o Battery Operation: 40 – 70 Hz
Input Power Connection: Hardwire Terminal Block 3W + G (L-L-N-G)
L1-N, L2-N Maximum Allowable VAC: 150VAC
Output Factory Default VAC: 120/208VAC @ 120 degrees
Factory Default VAC: 120/208VAC @ 120 degrees
