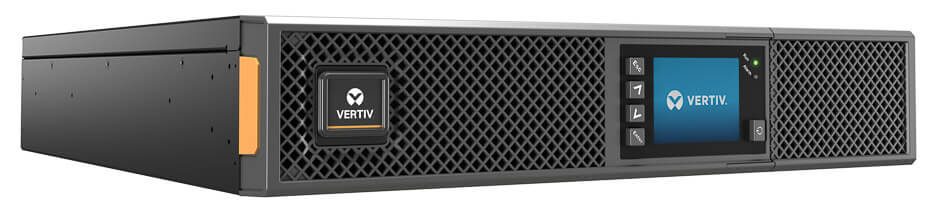

The Vertiv Liebert GXT5-1000LVRT2UXLN UPS, with a capacity of 1000VA/1000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.
Vertiv Liebert GXT5-1000LVRT2UXLN Features
- Reliable, easy-to-manage power protection and battery backup with 1000VA (1000W) capacity.
- Remote management capabilities support real-time environmental monitoring and alarm notifications.
- Highest power factor available on standard input connections.
- With 2019 ENERGY STAR® 2.0 certification and higher operating efficiency in standard and eco-mode.
- High power factor from 0.9-1.0
- User-friendly, gravity-sensing LCD
- Individually programmable output power receptacles
- Liebert® RDU101 NIC for SNMP communications and environmental sensor support
- Rack tower convertible systems
- Hot-swappable internal battery and scalable power with auto-detection of external battery cabinets
- Energy Star® 2.0 certified
Vertiv Liebert GXT5-1000LVRT2UXLN Specifications
Power Rating: 1000VA / 1000W
Input Voltage: Typical: 120V / Range: 60-150V
Output Voltage: 110/115/120/125VAC; (user-configurable); ±3%
Efficiency: Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring: Input: NEMA 5-15P; Output: (6) 5-15R
Operating Temperature: +32 to +104 °F (0 to 40 °C)
Interface Options: Optional communications card (Vertiv RDU101), USB, RS485, RS232, terminal block, external battery connector
Protocols: SNMP and web management enabled with optional Vertiv RDU101 communications card; serial connection for out-of-band management
Control Panel: Colored graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
Output Receptacles: 5-15R × 6; 4x individually programmable receptacles and 2x non-programmable receptacles
Listings: ENERGY STAR 2.0 certified, WEEE, RoHS2, REACH, UL 1778 4th edition and CSA 22.2 No. 107.1
Topology: On-line double conversion UPS; compact and flexible rack/tower form factor
For more information about the Vertiv Liebert GXT5 Series,
call 86 21 5859 8677 or email sales@alphaenertech.com.
