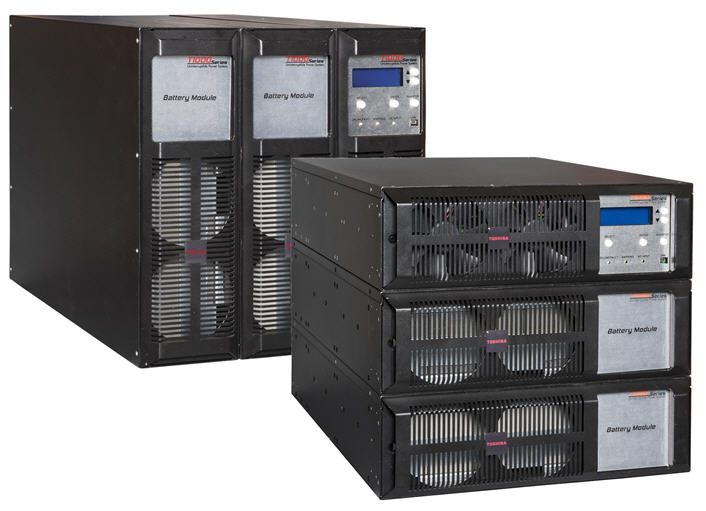

The Toshiba T1000 Series UPS 1-6kVA is a single-phase double conversion UPS that is designed for IT and retail installations. Reliable and efficient, the Toshiba T1000 Series features a 0.9 output power factor and is available in a range of sizes from 1 to 6kVA. As a double-conversion online UPS, it supplies uninterrupted, clean single-phase power to critical systems over large input voltage deviations and without resorting to battery backup. And when paired with Toshiba’s RemotEye™ 4, you can monitor and manage your UPS remotely with features such as email alerts, history/event logs, and remote client shutdown.
Toshiba T1000 Series Features
- True Online Double Conversion
- Tower or Rackmount Form Factor
- High 0.9 Output Power Factor
- Auto-Restart & Cold Start
- Extended runtime available with optional external battery cabinets
- Compatible with RemotEye™ 4 for monitoring and security
Toshiba T1000 Series Specifications – With Model Numbers
| Size | 1000VA | 2000VA | 5200VA | 6000VA |
| UL, 1778, CUL, CE, FCC | UL, 1778, CUL, CE, FCC | UL 1778, CUL, FCC | UL 1778, CUL, FCC | |
| Tower | ||||
| 120Vin 120Vout Model (US) | T1S0A1000AXA | T1S0A2000AXA | ||
| 230Vin 230Vout Model (International) | T1S0A1000FXF | T1S0A2000FXF | ||
| 208/240Vin 208/240Vout Model – Hardwire Input/Output | T1S0A6000GXG | |||
| 208/240Vin 208/240Vout Model – Hardwire Input w/ Output Receptacles | T1S2A6000GXG | |||
| 208/240Vin 208/240Vout Model – Input Line Cord w/ Output Receptacles | T1S4A5200GXG | T1S4A6000GXG | ||
| 208/240Vin 208/240/120Vout Model – Hardwire Input w/ Output Receptacles | T1S3A6000GXG | |||
| 208/240Vin 208/240/120Vout Model – Input Line Cord w/ Output Receptacles | T1S5A5200GXA | T1S5A6000GXG | ||
| Rack-Mount (6U-9U) | ||||
| 120Vin/120Vout Model (2U) | T1S0A1000AXAR2 | T1S0A2000AXAR2 | ||
| 230Vin/230Vout Model (2U) (International) | T1S0A1000FXFR2 | T1S0A2000FXFR2 | ||
| 208/240Vin 208/240Vout Model – Hardwire Input/Output (6U) | T1S0A6000GXGR6 | |||
| 208/240Vin 208/240Vout Model – Hardwire Input w/ Output Receptacles (6U) | T1S2A6000GXGR6 | |||
| 208/240Vin 208/240Vout Model – Input Line Cord w/ Output Receptacles (6U) | T1S4A5200GXGR6 | T1S4A6000GXAR9 | ||
| 208/240Vin 208/240/120Vout Model – Hardwire Input w/ Output Receptacles (9U) | T1S3A6000GXAR9 | |||
| 208/240Vin 208/240/120Vout Model – Input Line Cord w/ Output Receptacles (9U) | T1S5A5200GXAR9 | T1S5A6000GXAR9 | ||
| Input | ||||
| Voltage | 120 V | 120 V | 208/240 V | 208/240 V |
| International Voltage | 208 V/220 V/230 V/240 V | |||
| Capacity (VA) | 1000 VA | 2000 VA | 5200 VA | 6000 VA |
| Capacity (W) | 900 W | 1800 W | 4680 W | 5400 W |
| Frequency | 50/60 HZ Auto-Sensing | 50/60 HZ Auto-Sensing | 50/60 HZ Auto-Sensing | 50/60 HZ Auto-Sensing |
| Power Factor | Greater than 0.97 | Greater than 0.97 | Greater than 0.97 | Greater than 0.97 |
| Output | ||||
| Voltage | 100V/110V/115V/120V | 100V/110V/115V/120V | 200/208/220/230/240V (L-L) and Option w/Transformer for 120V (L-N) | 200/208/220/230/240V (L-L) and Option w/Transformer for 120V (L-N) |
| Frequency | 50/60 Hz Auto-Sensing | 50/60 Hz Auto-Sensing | 50/60 Hz Auto-Sensing | 50/60 Hz Auto-Sensing |
| Wave Form | Sinewave | Sinewave | Sinewave | Sinewave |
| Load Power Factor | 0.9 | 0.9 | 0.9 | 0.9 |
| Efficiency AC/DC/AC | Greater than 86% | Greater than 86% | Greater than 89% | Greater than 89% |
| Rated Output Current | 8.3A | 16.6A | 21.6A (240V) | 25A (240V) |
| Crest Factor | 3:1 | 3:1 | 3:1 | 3:1 |
| Battery | ||||
| DC Voltage | 36 Vdc/12V 9AH x 3 | 72 Vdc/12V 9AH x 6 | 216 Vdc/12V 9AH x 18 | 216 Vdc/12V 9AH x 18 |
| Backup Time | 6 min (full load@0.9pf) | 6 min (full load@0.9pf) | 5 min (full load@0.9pf) | 5 min (full load@0.9pf) |
| Environment | ||||
| Operating Temperature | 0 – 40C (32 – 104F) | 0 – 40C (32 – 104F) | 0 – 40C (32 – 104F) | 0 – 40C (32 – 104F) |
