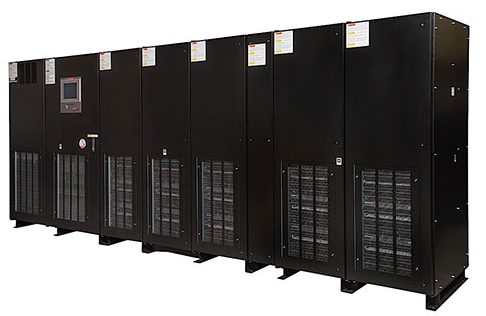

The Toshiba G9000 Series Series UPS is available in capacities of 100, 160, 225, 300, 500, 750, 1000, 1330, 1500, 1600, and 2000kVA and comes with an industry-leading three-year onsite warranty. It is designed for stand-alone or parallel use in up to eight-unit configurations (100-1000kVA) or six-unit configurations (1330-2000kVA) without requiring the use of a special switchgear cabinet.
Using the new Toshiba IGBT technology in the rectifier/converter, DC/DC chopper, and the inverter sections of the UPS, the G9000’s double-conversion topology provides an AC/DC/AC efficiencies of up to 97% at loads from 50% to 100%. Even at 20% loading, the efficiency remains greater than 94%. This is 10% to 20% better than current industry systems, making the G9000 excellent for N+1 parallel systems where loads are typically 30-40%.
Toshiba G9000 Series Lithium-Ion Battery Option
The Toshiba 9000 is available with optional Lithium-Ion Batteries, either traditional Li-Ion, or Li-Ion with a unique carbon-less chemistry that eliminates any risk of fire. Li-Ion Batteries can be the perfect choice for your three phase UPS and offer several advantages over traditional valve-regulated, lead acid batteries commonly used in UPS’s today. For more information comparing Li-ion batteries to VRLA batteries, click here.
Toshiba’s Carbon-less Lithium-Ion Battery Benefits
- Lithium Titanate (No Carbon)
- Compatible with Toshiba UPS
- 12 Year Full Replacement
- 15,000+ Full Discharge Cycle
- Operating Range Up To 50C
- 1/3 Weight of VRLA
- Sub 5 Minutes Battery Sizing
- Multi-String Design
- Built in Monitoring
- No Thermal Runaway Issues
Toshiba G9000 Series Features
- Next-Generation Insulated Gate Bipolar Transistor (IGBT) Technology
- True On-Line, Double-Conversion UPS
- Input Power Factor > 0.99
- Input Current THD < 3%
- 100% Unbalanced Load Capability
- Wide Input Voltage Range +15%, -20% (Without Utilizing Batteries)
- High Efficiency for Lower Operational Cost
- Smallest Footprint & Highest Power Density in Industry
- Electronic Battery Isolation for Battery Longevity
- Generator-Friendly Design & Compatibility
- Complete Front-Access for Installation, Operation, & Service
- Handles Leading Power Factor Loads (Without Derating)
Toshiba G9000 Series Specifications
| Model Number T90S3- | S10KS6XSN2 | S16KS6XSN2 | S22KS6XSN2 | S30KS6XSN | S50KS6XSN | S65KS6XSN |
| Capacity (kVA/kW) | 100/90 | 160/144 | 225/202.5 | 300/300 | 500/500 | 650/650 |
| Topology | True On-Line, Double-Conversion, All-IGBT Technology | |||||
| Input Voltage (Std) | 480V Three-Phase, Three-Wire + Ground Dual Input | |||||
| Voltage Range | -20% to +15% (Without Using Battery) | |||||
| Input Power Factor | >0.99 | |||||
| Frequency | 60 +/- 10% Hz | |||||
| Output Voltage (Std) | 480 V: Three-Phase, Three-Wire + Ground | |||||
| Frequency | 60+/- 0.01% Hz | |||||
| Output Power Factor | 0.9 Lagging | 1.0 (Unity) | ||||
| Temperature Range | 32° to 104°F (0° to 40°C) | |||||
| Full-Load Efficiency | 96.6% | 96.4% | 96.8% | 97.0% | 97.0% | 97.0% |
| 25% Load Efficiency | 94.2% | 95.1% | 95.7% | 94.4% | 94.8% | 95.4% |
| Dimensions | 27.6” W x 32.8” D x 80.6” H | 35.4” W x 32.8” D x 80.6” H | 51.2” W x 32.8” D x 80.7” H | 70.9” W x 32.8” D x 80.7” H | 90.6” W x 32.8” D x 80.7” H | |
| Weight | 772 lbs. | 860 lbs. | 1,080 lbs. | 2,260 lbs. | 3,300 lbs. | 3,300 lbs. |
For more information about Toshiba UPS,
call 86 21 5859 8677 or email sales@alphaenertech.com.
