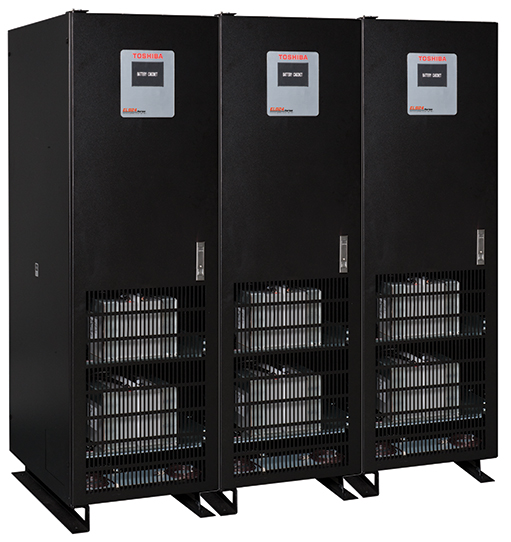

The Toshiba EL924 Series UPS is the next generation solution for the emergency lighting UPS market. As a Texas made, double conversion, all-IGBT UPS, the EL924 Series supplies the true sinewave power needed by the LED lights industry.
The EL924 Series system’s capacity allows it to act as a large centralized power hub in a building system for reduced maintenance costs and time. With a compact footprint, high degree of customization, and industry-leading reliability, the EL924 Series UPS brings the quality of the Toshiba brand to UL 924 applications.
Toshiba EL924 Series UPS Features
- High Efficiency
- Easily Installed
- 0.9 Power Factor
- Small Footprint
- Made in the U.S.A.
Toshiba EL924 Series UPS Specifications
| Capacity | 15kVA (13.5kW) | 20kVA (18kW) |
| Topology | True On-Line Double Conversion UPS | |
| Input Voltage (Std) | 208/380/400/415/480/600 | |
| Voltage Range | +10%, -15% at full load,+10%, -30% at 70% load | |
| Input Power Factor | 0.97 | |
| Frequency | 50/60 Auto-Sensing | |
| Output Voltage (Std) | 208/380**/400**/415**/480** | |
| Frequency | 60 Hz, ±1% | |
| Output Power Factor | 0.9 | |
| Operating Temperature | 32 to 104 F (20 to 40 C) | |
| Certification | UL924, UL1778, ANSI C62.41 (IEEE 587) | |
