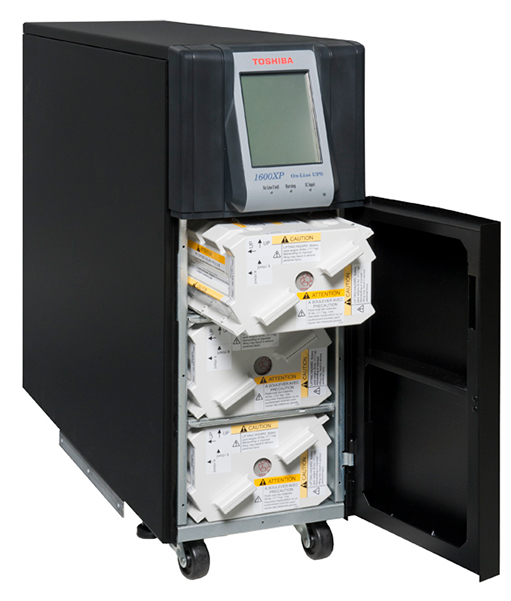

The Toshiba 1600XP/XPi Series is single-phase double-conversion UPS, available in a range of sizes: 3.6 kVA, 6.0 kVA, 8.0 kVA, 10.0 kVA, 14 kVA, 18 kVA, and 22 kVA. Available in a tower design solution with a LCD touch-screen display that provides unmatched access for UPS monitoring and control. As a double-conversion online UPS, supplies uninterrupted, clean single-phase power to critical systems over large input voltage deviations without resorting to battery backup.
Toshiba 1600XP/XPi Series Features
- Digital LCD Touchscreen Display
- Internal Isolation Transformer
- Wide Input Voltage Window
- Wide Input Frequency Window
- Input Power Factor > 0.95
- Power Factor Correction
- Output Power Factor 0.85
- Optional Network Interface Card for Remote Monitoring/Control
- Optional External Battery Cabinets
- Optional Environmental Monitoring Device
Toshiba 1600XP/XPi Series Specifications
| Capacity | 3.6 KVA (3.1 KW) | 6 KVA (5.1 KW) | 8 KVA (6.8 KW) | 10 KVA (8.5 KW) | 14 KVA (11.9 KW) | 18 KVA (15.3 KW) | 22 KVA (18.7 KW) |
| Topology | True On-Line, Double Conversion; IGBT Power Factor Corrected Input; Internal Isolation Transformer | ||||||
| Certifications | UL 1778, CUL, CE, FCC Class A, IEEE 587, ANSI/C62.41, ISO 9001, ISO 14001, NEMA/PE1-1993, RoHs | ||||||
| Input Voltage | Single-Phase 208/240 VAC (Three-Wire Input/L-L, G); 230 VAC (Three-Wire Input/L, N, G), +10% -30% (Based on Typical 70% Load) | ||||||
| Battery Type | Valve-Regulated Lead Acid; Flame Retardant (9.0 Amp Hr) | ||||||
| Temperature Range | 0 to 40°C (Operating); -20° to +40°C (Storage) | ||||||
| Enclosure | Steel Enclosure; Complies with NEMA 1 and UL Type-1 Standard | ||||||
| Enclosure Dimensions | 22.1″H x 10″W x 33″D | 27.5″H x 10″W x 33″D | 28.4″H x 13″W x 34.9″D | 39.1″H x 17.5″W x 36.1″D | |||
| Shipping Weight | 280 lb/127 kg | 346 lb/157 kg | 476 lb/214 kg | 784 lb/355 kg | 784 lb/355 kg | 835 lbs/379 kg | |
| Battery Pack Size | 5″H x 7.3″W x 19″D (Battery Pack Part # 51896-FS) | ||||||
| Battery Pack Quantity | Two | Three | Four | Eight | |||
