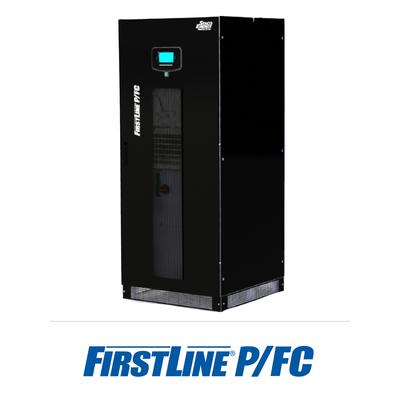

FirstLine P/FC Frequency Converter

The FirstLine P/FC Frequency Converter, 480 VAC, 52-400 kVA, by Staco Energy Products, is a three phase 60Hz/50Hz frequency converter, for export product testing or operation of equipment rated at international frequency and voltage. The FirstLine P/FC converts standard 480 VAC 60Hz power to a selectable and precise 380, 400 or 415 VAC +/- 2% 50Hz power.  In the event of a power failure, it can be equipped with an optional battery cabinet to ride through a limited outage.

FirstLine P/FC Frequency Converter Features

• Up to 98% Efficient
• Lower energy costs and carbon footprint
• Front, top or bottom access, so it can be placed against a wall to minimize footprint
• Cooler operation extends internal component life
• High input power factor of 0.99
• Low input current distortion of <= 3%
• Power walk-in function that ensures progressive rectifier start-up
• IGBT and Digital Signal Processor (DSP) – reduces the impact of the UPS on the local supply
• Dual Input – main power and secondary emergency standby power increase resilience of single or parallel system configuration
• High Performance Filter – protects upstream power supply sources from harmonics and reactive power generated by the loads power
• Menu Select Display – user friendly display is easy to see and intuitive to use
• Parallel up to 8 Units – provides redundancy for mission critical applications with no additional hardware
• Full Two Year Warranty

FirstLine P/FC Specifications

Input/Output Voltage: 480Y/277
Operating Range: 45-66Hz
Seismic-certified models are available

FirstLine P/FC Models
