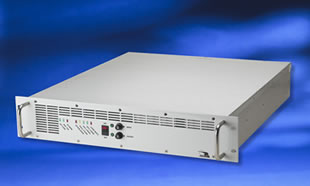

Rugged ED Series UPS 1kVA to 2.4kVA

50/60/400Hz Input/Output

The Rugged ED Series UPS is a small and lightweight unit that can be configured as an on-line UPS, frequency converter, phase converter or AC voltage regulator. Provides a wide input range with tight output voltage regulation of +3%, as well as extended brownout protection. Accepts a 50, 60 or 400Hz input with a 50, 60 or 400Hz output. Models supporting single and three-phase inputs with single-phase outputs are offered. This series utilizes a field-proven high performance online design and is ideal for military COTS and aviation applications.

Rugged ED Series UPS Applications:

• Military & Aerospace
• Aircraft Frequency Conversion
• Off Shore Platforms
• Shipboard Systems
• Robotics
• Automated Manufacturing
• Test Equipment Benches
• Precision Motor Speed Application
• Mobile Office/Labs
• Communications/Microwave

Falcon Electric’s Rugged ED Series UPS is more than an international voltage/frequency converter, voltage regulator or line conditioner. Its unique features will significantly improve your equipment’s reliability, virtually eliminating power-related downtime and dramatically increasing productivity. Its small size and lightweight construction makes it ideal for OEM and integrated applications. The Rugged ED Series UPS provides a unique flexibility in a small footprint. The ED Series can be factory configured as a pure frequency converter accepting a 50, 60 & 400Hz input and yielding a fixed 50 or 60Hz output. It can also supply a 400Hz, 120V output if properly derated. The ED can be configured as an iconverter, making it an ideal solution for those tough applications requiring frequency conversions

Since the ED Series is a solid-state generator, it prevents daily power disturbances from reaching your equipment. Constant voltage transformers, line conditioners and other devices are not designed to prevent damage from these problems. The ED continually regenerates new, clean AC power in pure sinewave form for superior protection. Even with wide input variations in voltage and frequency, the ED Serie’s output steadfastly remains at its designed voltage and frequency. It also allows your system to continuously operate during extended brownouts to 88 VAC.

Falcon Electric’s ED Series is designed to start loads that exhibit up to 1000% inrush current when started from utility. This gives the ED the ability to start tough loads such as motors, multiple computers or incandescent lighting. Due to its Regenerative On-line design, the ED Series will regenerate new, clean computer grade power with tightly regulated voltage and frequency, independent of generator voltage and frequency drift.

For more in-depth information, see the Rugged ED Series UPS 1kVA to 2.4kVA Spec Sheet.
