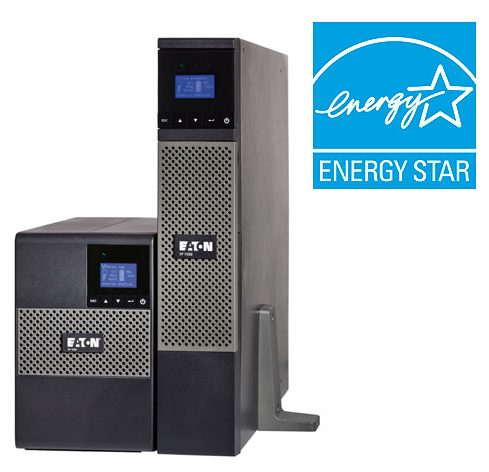

The Eaton 5P UPS delivers reliable, enterprise-class backup power in tower and rackmount form factors with an efficiency rating of up to 99%. With ENERGY STAR qualified models, the 5P’s graphical LCD screen allows you to view UPS status in a single glance and provides more available power than comparable UPS. When paired with Eaton Intelligent Power Manager software, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.
- Flexible installation available: Tower, 2-post rackmount, 4-post rackmount, or Wall-mount
- Available with Lithium-Ion batteries (5P1550GR-L, 5P1550GR-L)
- Intelligent Power Manager offers remote management with notification and alerts for power events
- LCD Display shows critical UPS information including battery time and outage tracking
- Three year warranty provides the most comprehensive coverage available in the industry
Eaton 5P UPS Models
| Model | Form Factor | Power | Power Factor | Runtime Full/Half load (min) | Input | Output |
| 5P1000 | Tower | 1000VA/770W, 120V | 0.77 | 5/12 | 5-15P | (8) 5-15R |
| 5P1000R | Rack | 1000VA/770W, 120V | 0.77 | 5/12 | 5-15P | (5) 5-15R |
| 5P1000RC | Rack | 1000VA/770W, 120V | 0.77 | 5/12 | 5-15P | (10) 5-15R |
| 5P1500 | Tower | 1440VA/1100W, 120V | 0.77 | 4/13 | 5-15P | (8) 5-15R |
| 5P1500R | Rack | 1440VA/1100W, 120V | 0.77 | 4/13 | 5-15P | (5) 5-15R |
| 5P1500R-L | Rack | 1440VA/1100W, 120V | 0.77 | 4/13 | 5-15P | (5) 5-15R |
| 5P1500RC | Rack | 1440VA/1100W, 120V | 0.77 | 5/13 | 5-15P | (10) 5-15R |
| 5P1500RT | Rack | 1440VA/1440W, 120V | 1 | 3/11 | 5-15P | (8) 5-15R |
| 5P1550G | Tower | 1550VA/1100W, 230V | 0.7 | 4/13 | C14 | (8) IEC C13 |
| 5P1550GR | Rack | 1550VA/1100W, 230V | 0.7 | 4/13 | C14 | (6) IEC C13 |
| 5P1550GR-L | Rack | 1550VA/1100W, 230V | 0.7 | 4/11, Li-Ion Battery | IEC C14, Receptacle | (6) IEC C13 |
| 5P2200RT | Rack/Tower | 1950VA/1920W, 120V | 0.98 | 3/9 | 5-20P | (8) 5-20R |
| 5P3000 | Tower | 3000VA/2700W, 120V | 0.9 | 4/10 | L5-30-P | (6) 5-20R, (1) L5-30R |
| 5P3000RT | Rack/Tower | 3000VA/2700W, 120V | 0.9 | 4/10 | L5-30P | (6) 5-20R, (1) L5-30R |
For more in-depth specifications, see the data sheet.
For more information about the Eaton 5P UPS,
call 86 21 5859 8677 or email sales@alphaenertech.com.
