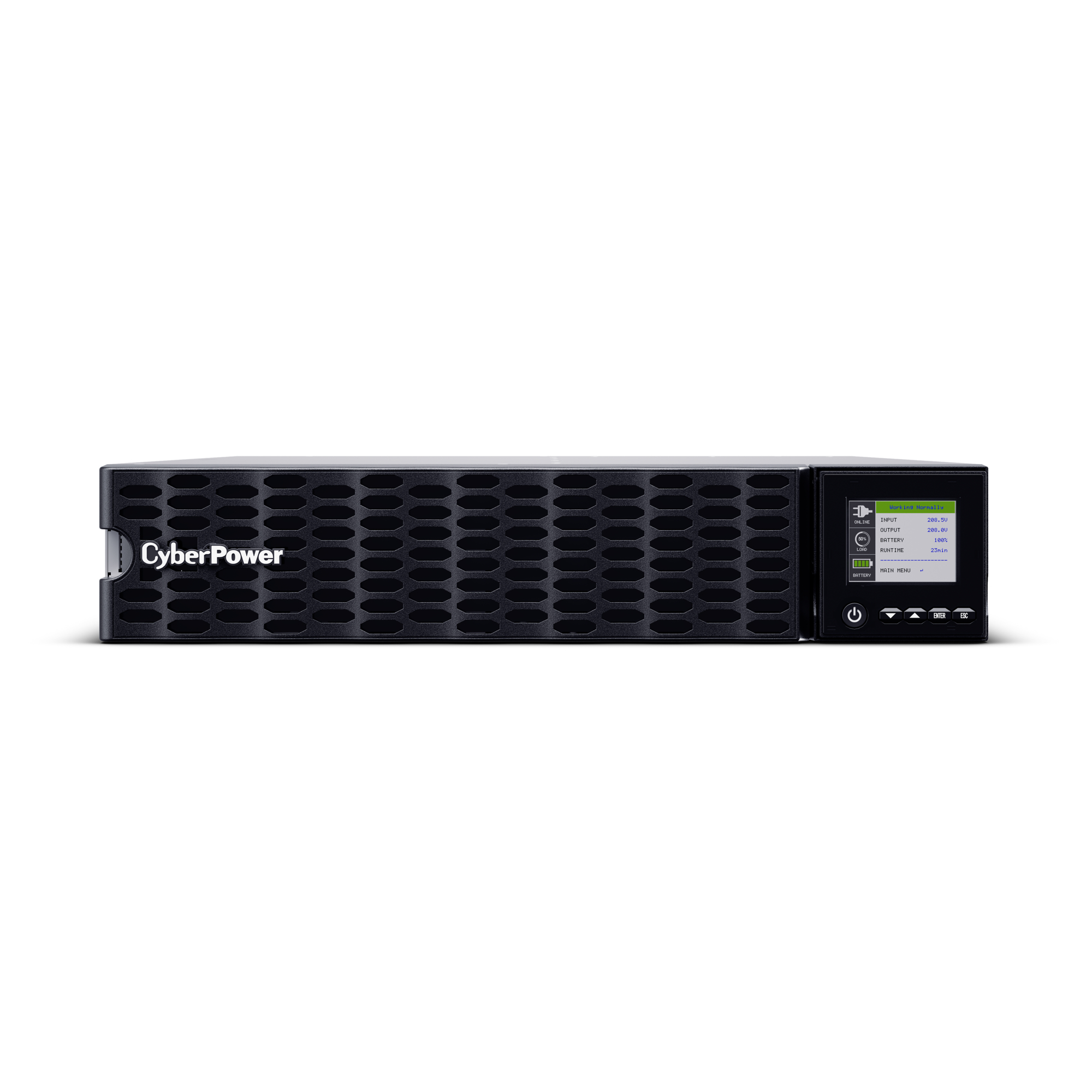

CyberPower Smart App Online OL6KRTHD

The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models – giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise. The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.

CyberPower Smart App Online OL6KRTHD Features

• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Tool-less Front Panel
• Hot-Swappable Batteries
• Extended Battery Module (EBM)
• Smart Battery Management (SBM)
• Battery Equalization Technology
• Fast Charge Technology
• PowerPanel® Business Software
• Hanging Rack Mount Rail
• Tamper-Proof Input Circuit Breaker

CyberPower Smart App Online OL6KRTHD Specifications

• Capacity: 6000 VA / 6000 W
• High Density: 2U Size
• Runtime @ 3000 W: 4.9 min
  Runtime @ 6000 W: 1.4 min
• Power Factor (PF): 1
• Topology: Double-conversion
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
• Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option
• Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
• Communication ports: USB, Serial, SNMP, EPO
• Management software: PowerPanel® Business Edition
• Energy saving: ECO Mode Efficiency >96%
• Warranty: 3 year

Other Smart App Online OL6K Models Available

• Smart App Online OL6KRT, 6U, with a pre-installed remote management card and extended runtimes.
• Smart App Online OL6KRTF, 8U, with a 2U step down transformer and extended runtimes, and a pre-installed remote management card.
• Smart App Online OL6KRTMB, 6U, with maintenance bypass, a pre-installed remote management card and extended runtimes.
• Smart App Online OL6KRTMBTF, 8U, with a 2U step down transformer, maintenance bypass, extended runtimes, and a pre-installed remote management card.
• Smart App Online OL6KRTHW, 6U, with maintenance bypass, a pre-installed remote management card, extended runtimes and hardwired outlet.
