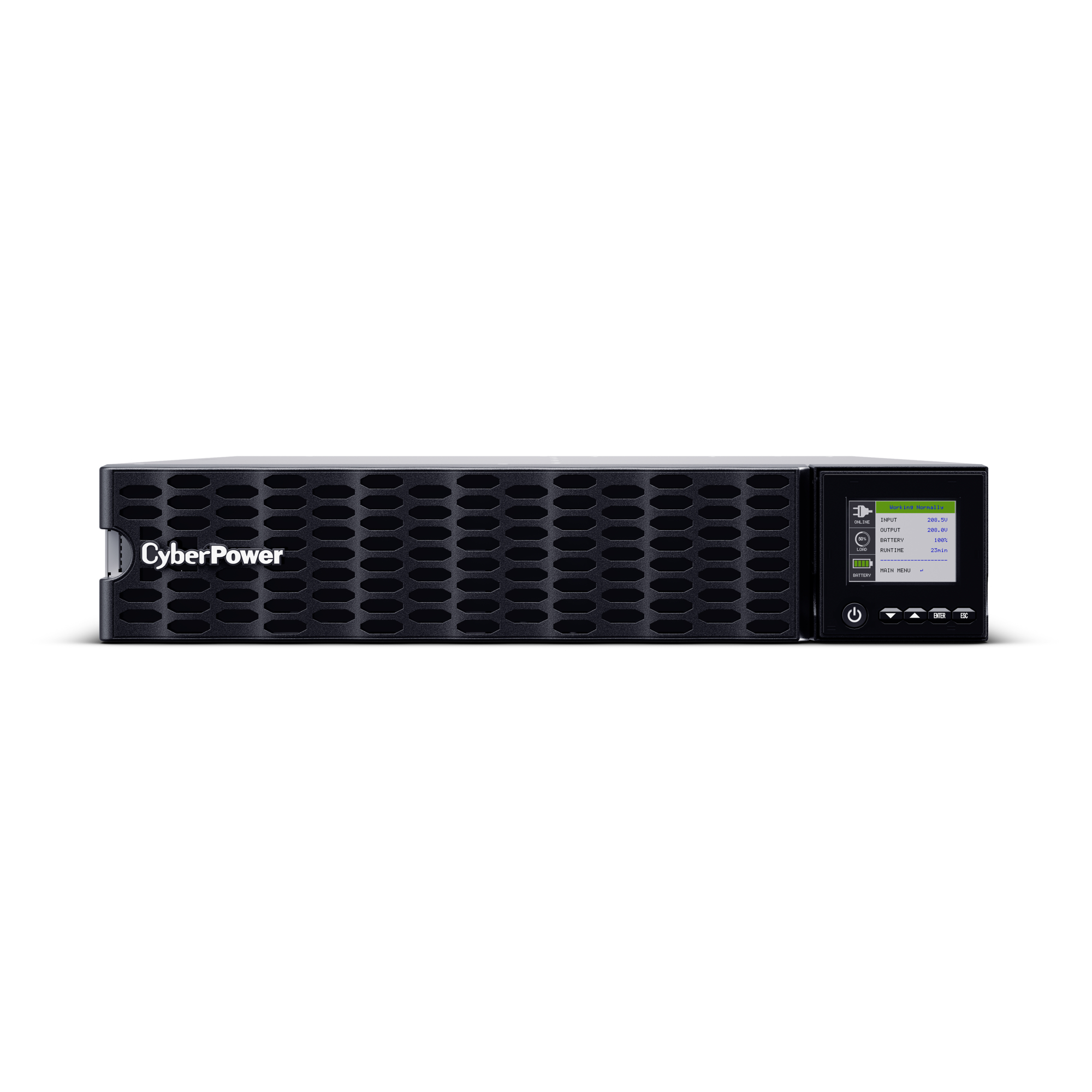

The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models – giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.
CyberPower Smart App Online OL5KRTHD Specifications
- Capacity: 5000 VA / 5000 W
- High Density: 2U Size
- Runtime @ 2500 W: 6.4 min
Runtime @ 5000 W: 2.3 min - Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option
- Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency >96%
- Warranty: 3 year
For more information about CyberPower UPS,
call 86 21 5859 8677 or email sales@alphaenertech.com.
