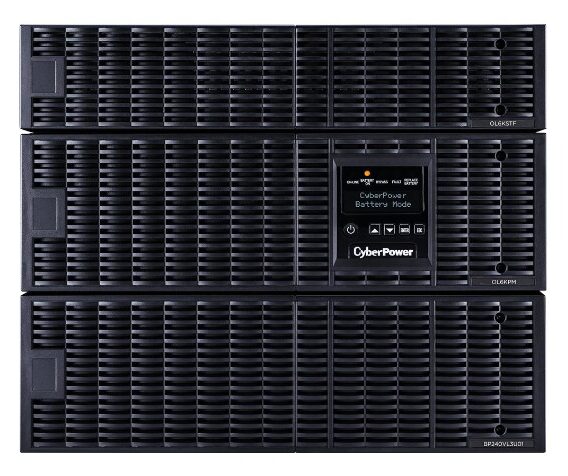

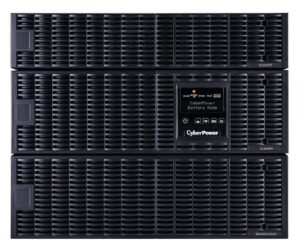

The CyberPower Smart App Online OL10KRTMBTF is a 8U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, a pre-installed RMCARD205 and a 2U step-down transformer to support 120 V and 200-240 V output requirements. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 97% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.
The OL10KRTMBTF enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests. Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL10KRTMBTF simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system. The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power.
CyberPower Smart App Online OL10KRTMBTF Features
- Double Conversion Topology
- Sine wave output, zero transfer time
- Maintenance Bypass Switch
- Output: 200-240V UPS
- GreenPower UPS™ ECO Power Mode
- RM205CARD for remote monitoring
- Generator compatibility mode
- 7 Outlets / USB, Serial, EPO and Dry Contact Ports
- PowerPanel® Business Edition Management Software
Smart App Online OL10KRTMBTF Specifications
- Capacity: 10,000 VA / 10,000 W
- Output Power Factor (PF): 1
- Runtime @ 5000 W: 10 min
Runtime @ 10000 W: 3.6 min - Topology: Double Conversion
- Waveform: Sine Wave
- Output: 120 VAC; 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type: Hardwire
- Outlet types: 6 x NEMA 5-20R, 2 × NEMA L6-20R, 4 x NEMA L6-30R, 1 x Hardwire Terminal Block
- Communication ports: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Energy saving: ECO Mode Efficiency up to 97%
