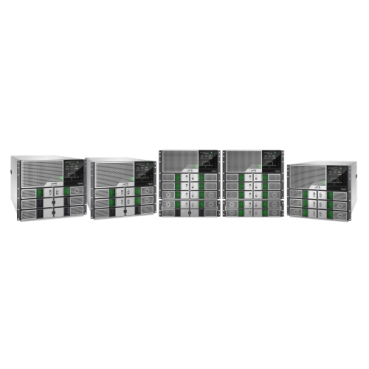

APC Smart-UPS Modular Ultra

The APC Smart-UPS Modular Ultra, by Schneider Electric, provides on-line power protection in ultra-high power density, with Lithium-ion batteries in a modular, internally redundant-capable architecture. Smart-UPS Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPS systems. Its modular design allows users to scale power or runtime to grow with your facility’s needs. These units are scalable with up to 20kW of power protection. Remote monitoring and management is through EcoStruxure IT connection via the embedded network port.

The Smart-UPS Modular Ultra also boasts a lower Total Cost of Ownership compared to UPS with VRLA batteries. The innovative semiconductor design, paired with 10-year lithium-ion batteries, provides added power density in a UPS that is 50% smaller and lighter than comparable modular UPS with VRLA batteries. Universal Module Bays in the main chassis can be used for either battery or power modules. The requirement is to have one Power Module for each Battery Module. The battery expansion chassis accommodates additional batteries for larger systems or extended runtimes.

The electrical connections of the Smart-UPS Modular Ultra have backwards compatibility with APC Symmetra LX so upgrading from a Symmetra LX with VRLA to the APC Smart-UPS Modular Ultra with Lithium-Ion is easy. As part of the Smart-UPS family, the Modular Ultra is the industry’s most sustainable and space-optimized modular UPS solution of its kind and ideal for the facilities of today and tomorrow.

• Next-generation modular, scalable and redundant UPS
• N+1 redundant-capable up to 20kW
• Some models allow for the External Bypass to be installed in the cabinet
• Unity power factor
• 10-year UPS and battery design life
• Universal Module Bays can be used for battery or for power modules
• Embedded network card
• The modular design lets you scale 5, 10, 15 or 20kW of single phase power protection
• The smallest, lightest, most powerful and most sustainable modular UPS of its kind
• Lithium-ion batteries provide 3x the battery life compared to lead acid batteries
• Featuring green and recycled materials
• Best-in-class carbon reduction
• 96% efficient
• Rack or tower form factors
• Modular design features user-upgradeable parts and servicing without downtime
• Ideal for servers, voice/data networks, retail, medical labs and light industrial applications
• Backwards compatibility with APC Symmetra LX for easy upgrade from a Symmetra LX with VRLA
• 5-year warranty

Smart-UPS Modular Ultra Models

SRYL5K15RMXLT – Smart-UPS Modular Ultra, On-line, 5kW, 9U, Rackmount, Scalable to 15kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
SRYL5KX15LT18 – Smart-UPS Modular Ultra, 5kW, 9U UPS installed in an 18U cabinet, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, Network Management Card, External bypass can be installed in the cabinet
SRYL5K15XLT24 – Smart-UPS Modular Ultra, 5kW, 9U UPS installed in a 24U cabinet, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, Network Management Card, External bypass can be installed in the cabinet
SRYL10K15RMXLT – Smart-UPS Modular Ultra On-Line, 10kW, 9U, Rackmount, Scalable to 15kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
SRYL10K15XLT18 – Smart-UPS Modular Ultra, 10kW, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, 9U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL10K15XLT24 – Smart-UPS Modular Ultra, 10kW, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, 9U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL15K15RMXLT – Smart-UPS Modular Ultra On-Line, 15kW, 9U, Rackmount, Scalable to 15kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
SRYL15K15XLT18 – Smart-UPS Modular Ultra, 15kW, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, 9U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL15K15XLT24 – Smart-UPS Modular Ultra, 15kW, On-line, Scalable to 15kW N+1 Redundant, Tower, 208/240V, 9U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL5K20RMXLT – Smart-UPS Modular Ultra, 5kW, 12U, Scalable to 20kW N+1 Redundant, Rackmount, 208/120V, Touchscreen, Network Management Card
SRYL5K20XLT18 – Smart-UPS Modular Ultra, 5kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL5K20XLT24 – Smart-UPS Modular Ultra, 5kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL10K20RMXLT – Smart-UPS Modular Ultra, 10kW, 12U, Scalable to 20kW N+1 Redundant, Rackmount, 208/120V, Touchscreen, Network Management Card
SRYL10K20XLT18 – Smart-UPS Modular Ultra, 10kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL10K20XLT24 – Smart-UPS Modular Ultra, 10kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL15K20RMXLT – Smart-UPS Modular Ultra, 15kW, 12U, Scalable to 20kW N+1 Redundant, Rackmount, 208/120V, Touchscreen, Network Management Card
SYRYL15K20XLT18 – Smart-UPS Modular Ultra, 15kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SYRYL15K20XLT24 – Smart-UPS Modular Ultra, 15kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL20K20RMXLT – Smart-UPS Modular Ultra On-line, 20kW, 12U, Rackmount, Scalable to 20kW N+1 Redundant, 208/240V, Touchscreen, Network Management Card
SRYL20K20XLT18 – Smart-UPS Modular Ultra, 20kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in an 18U cabinet, Network Management Card, External bypass can be installed in the cabinet
SRYL20K20XLT24 – Smart-UPS Modular Ultra, 20kW, On-line, Scalable to 20kW N+1 Redundant, Tower, 208/240V, 12U UPS installed in a 24U cabinet, Network Management Card, External bypass can be installed in the cabinet
