Active Power’s CLEANSOURCE HD UPS with flywheel technology delivers savings of 40% TCO over traditional UPS and are 12 times less likely to fail. The CLEANSOURCE HD is a green option, reducing your impact on the environment by 90%. Active Power’s flywheel UPS is a perfect fit for today’s mission critical applications in data centers, health care facilities, and industrial and manufacturing sites.

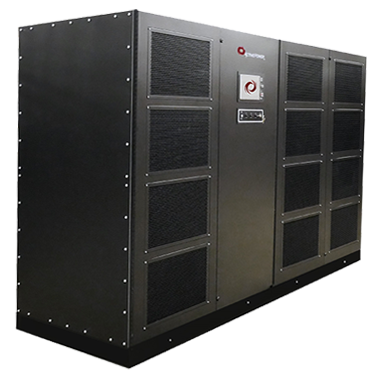

The HD model, 675 kW(60Hz), stores 10.2 MJ of energy in two cabinets consuming just 35 square feet of floor space. It offers up to 1 minute of runtime (load dependent). With a wide ambient temperature range of 32 to 104°F, this high density design is up to 98% efficient and is designed for easy installation, operation, and service. These models are made in the USA.
CLEANSOURCE HD UPS Features
- Small footprint – Half the space of legacy battery-based UPS
- Cost-effective installation
- Less heat rejection
- Low cooling requirements
- Low maintenance and service
- Generator compatibility
- Wide ambient temperature range of 32 to 104°F – ideal for rugged applications
- 20 year design life
Flywheel Technology
- Over 96% efficient at 40% load
- No need for dedicated cooling for batteries
- Routine annual check-up and bearing change every third year
- Integrated flywheel with 20-year life
CLEANSOURCE HD UPS Specifications
| Rating | |
| Maximum kVA | 750 |
| Maximum kW | 675 |
| Input | |
| Voltage | 480 VAC 3-phase, 3-wire plus ground |
| Voltage Range | +10%/-15% (programmable) |
| Frequency | 60Hz |
| Power Factor | 0.99 at rated load and nominal voltage |
| Output | |
| Voltage | 480 VAC 3-phase, 3-wire plus ground |
| Voltage Regulation | Steady State: +/-1% for +/-10% input Flywheel Mode: +/-1% steady state Transient: +/-1% within 50mSec for 100% load step |
| Frequency | 60Hz |
| Current – Nominal 480VAC | 903A |
| Energy Storage | |
| Type | Integrated Steel Flywheel spinning at 7,700RPM |
| Flywheel Run Time | 100%: 15s 75%:20s 50%: 29s 25%: 56s |
| Flywheel Recharge Time | ˂2 min nominal at 175kW |
| Internal Static Bypass | Included |
| Operating Temperature | 32 to 104°F |
| Height | 80 in. |
| Width | 132 in. |
| Depth | 39 in. |
| Weight | 10,971 lbs. |
| Cable Entry | Top or Bottom |
For more in-depth specifications, see the data sheet.
