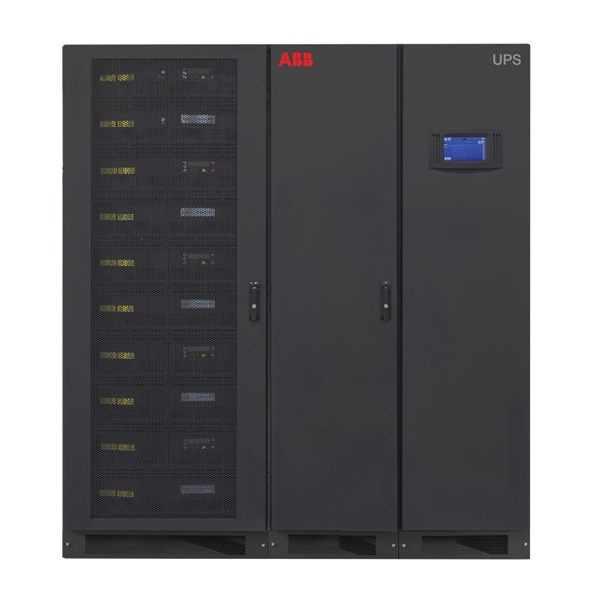

The ABB Power Conceptpower DPA 500, with Decentralized Parallel Architecture (DPA), is a modular UPS for medium and large data centers. Conceptpower DPA 500 is designed to secure continuity of critical operations for data centers, colocations, server rooms and other IT applications. It also protects industrial automation processes, healthcare facilities and many other vertical markets where operations are critical. Each high-reliability, standardized module is self-contained and can be swapped at any time, so no load has to be ever switched off making routine maintenance safe and easy.
ABB Conceptpower DPA 500 Features
- 99.9999% availability
- Decentralized parallel architecture
- Replace or add modules with no downtime
- No single points of failure
- Scalable from 100kW up to 3MW
- Optimized cabinets – available in 300kW and 500kW
- > 96% true online efficiency
- Small footprint/high power density
- Unity power factor (kW = kVA)
- Low input harmonic distortion (THDi < 3.5%)
- Online-swap modularity (OSM)
- Online serviceability
ABB Conceptpower DPA 500 Specifications
| 300kW Cabinet | 500kW Cabinet | |
| System power range | 100kW – 1.2MW | 100kW – 3MW |
| Nominal power/module | 100kW | |
| Output power factor | 1.0 | |
| Topology | Double conversion, transformerless, modular, Decentralized Parallel Architecture | |
| Nominal input voltage | 3 x 480V + G | |
| Frequency range | 60Hz ± 5% | |
| Power factor | 0.99 @ 100% load | |
| Rated output voltage | 3 x 480 V | |
For in-depth specifications, see the data sheet.
To learn more about the DPA 500,
call 86 21 5859 8677 or email sales@alphaenertech.com.
