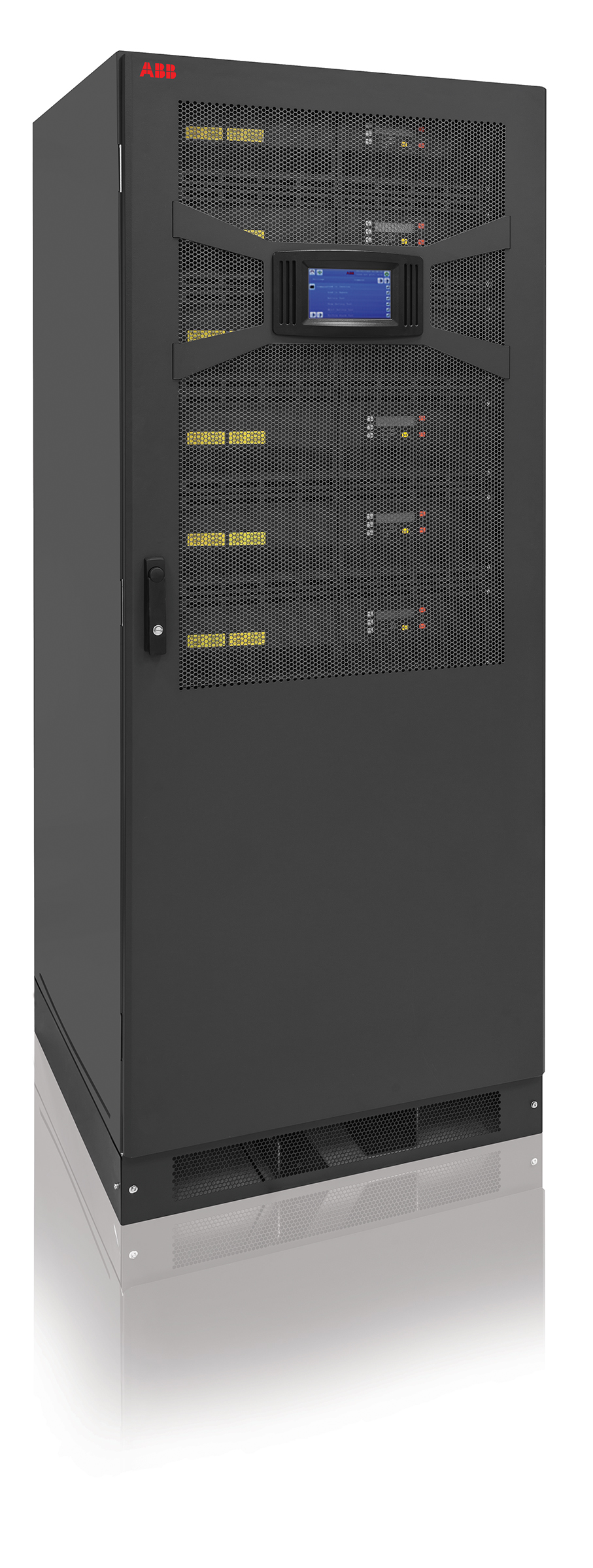

ABB Conceptpower DPA 240 UL – Three Phase UPS 40 kW to 1.2 MW

The ABB Conceptpower DPA 240 UL modular UPS, with decentralized parallel architecture (DPA), was conceived for small to mid-sized data centers. The Conceptpower DPA 240 fulfills power requirements from 40 kW to 1.2 MW at 415V and provides maximum availability for those who require zero downtime as well as a low total cost of ownership. The DPA 240 UL can be used in standalone or parallel configuration. Horizontal scalability is an option, with up to five frames in parallel, to increase total power up to 1.2 MW.

This advanced UPS design provides the highest degree of protection in critical applications where the load must be fed with quality power. These Conceptpower DPA systems utilize decentralized parallel architecture that ensures the highest level of reliability and availability with true redundancy across modules.

ABB Conceptpower DPA 240 UL Features

• 99.9999% availability
• Decentralized parallel architecture
• Replace or add modules with no downtime
• Short mean-time-to repair
• Eliminates single points of failure
• Vertical and horizontal scalability
• True online efficiency: Up to 95.6% at nominal load
• Small footprint/high power density
• Unity power factor (kW = kVA)
• Low input harmonic distortion (THDi < 4%)
• Online-swap modularity (OSM)
• Online serviceability

ABB Conceptpower DPA 240 UL Specifications

For more in-depth specifications, see the data sheet.
