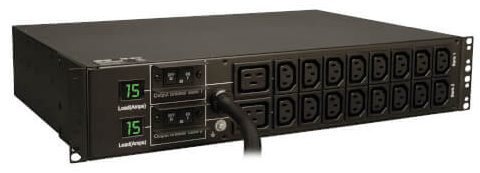

Tripp Lite Metered PDU

Tripp Lite Metered PDU (Power Distribution Unit) offers reliable in-rack power distribution for data centers, server rooms, and network wiring closets. The Metered PDU will locally monitor load level and avoid potential overloads with a built-in digital current meter while offering reliable, rack-mount, multi-outlet, single or three-phase, power distribution from any protected UPS, generator or mains input power source. The Metered PDU avoids potential overloads with a built-in digital current meter.

Some metered models have an automatic transfer switch that provides redundant power sources. An Automatic Transfer Switch PDU automatically switches to a secondary power source if power fails or is switched off for maintenance. The dual AC inputs can be connected to two utility sources, two generator sources, two UPS sources or any combination. With single and 3-phase, vertical and horizontal options, and ranges from 1.4kW to 22.2kW, Tripp Lite has the metered PDU model that will fit your application.

Tripp Lite Metered PDU Models

PDUMH20 – 1.92kW Single-Phase, Horizontal, 1U, 120V, Outlets (12) 5-15/20R, 15ft Cord
PDUMV20 – 1.9 kW Single-Phase, Vertical, 0U, 120V, Outlets (28) 5-15/20R, 15ft Cord
PDUMV30HV – 5/5.8kW Single-Phase, Vertical, 0U, 208/240V, Outlets (6)C19 & (24)C13, 10ft Cord
PDUMH15 – 1.4kW Single-Phase, Horizontal, 1U, 120V, Outlets (13) 5-15R, 15ft Cord
PDUMH20HVAT – 3.8kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 1U, Outlets (8) C13 &(2) C19, TAA
PDUMV20HV – 3.2-3.8kW Single-Phase, Vertical, 0U, 200-240V, Outlets (6)C19 & (32)C13 , 10ft Cord
PDUMH20HV – 3.2-3.8kW Single-Phase, Horizontal, 1U, 200-240V, Outlets (8) C13 & (2) C19, 12ft Cord, TAA
PDUMH15AT – 1.4kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 1U, 2 120V, Outlets (8) 5-15R, TAA
PDUMV40 – 3.8kW Single-Phase, Vertical, 0U, Dual Circuit, 120V, Outlets (32) 5-15/20R, 10ft Cord
PDUMV30 – 2.9kW Single-Phase, Vertical, 0U, 120V, Outlets (24) 5-15/20R, 10ft Cord
PDU3MV6L2130 – 2.9kW Single-Phase, Vertical, 0U, 120V, Outlets (24) 5-15/20R, 10ft Cord
PDUMH30 – 2.9kW Single-Phase, Horizontal, 1U, 120V Outlets (12) 5-15/20R, 15ft Cord
PDUMV15 – 1.44kW Single-Phase, Vertical, 0U, 120V, Outlets (16) 5-15R, 15ft Cord, 48 in.
PDUMH20AT – 1.9kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 1U, 2 120V, Outlets (16) 5-15/20R, TAA
PDUMH20-ISO – 1.92kW Single-Phase Metered PDU + Isobar Surge Suppression, Horizontal, 1U, 3840 Joules, 120V, Outlets (12) 5-20R & (2) 5-15R, 15ft Cord
PDUMH30HV – 5.8kW Single-Phase, Horizontal, 2U, 208/240V, Outlets (16) C13 & (2) C19, 12ft Cord, TAA
PDUMH15-ISO – 1.44kW Single-Phase + Isobar Surge Suppression, 3840 Joules, Horizontal, 1U, 120V, Outlets (14) 5-15R, 15ft Cord
PDUMV30HV2 – 5.8kW Single-Phase, Vertical, 0U, 208/240V, Outlets (8) C19 & (40) C13, 10 ft. Cord, TAA, 70 in.
PDUMV32HV – 7.4kW Single-Phase, Vertical, 0U, 230V, Outlets (8) C19 & (40) C13, 10 ft. Cord, TAA, 70 in.
PDUMH15HVAT – 2.4kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 1U,  2 200-240V, Outlets (10) C13, TAA
PDUMH30AT – 2.9kW Single-Phase Metered Automatic Transfer Switch PDU, Horizontal, 2U, 2 120V, Outlets (24) 5-15/20R & (1) L5-30R, TAA
PDUMV20-36 – 1.9kW Single-Phase, Vertical, 0U, 120V, Outlets (14) 5-15/20R, 36 in. height
PDU3MV6H50 – 12.6kW 3-Phase, Vertical, 0U, 208V, Outlets (36) C13 & (9) C19, 6ft Cord, TAA
PDUMH15-6 – 1.4kW Single-Phase, Horizontal, 1U, 120V, Outlets (13) 5-15R, 100-127V input, 6ft Cord
PDUMV20-72 – 1.9kW Single-Phase, 120V, Outlets (36) 5-15/20R, 72-in.
PDU3MV6H50A – 14.4kW 3-Phase, Vertical, 0U, 208V, Outlets (36) C13, (6) C19, (3) L6-30R), 6ft Cord, TAA
PDUMH20-6 – 1.9kW Single-Phase, Horizontal, 1U, 120V, Outlets (12) 5-15/20R), 6ft Cord
PDU3MV6L2120LV – 5.7kW 3-Phase, Vertical, 0U, 120V, Outlets (42) 5-15/20R, 6ft Cord, TAA
PDU3MV6L2120B – 5.7kW 3-Phase Metered, Vertical, 0U, 208/120V, Outlets (21) 5-15/20R & (6) L6-20R, 6ft Cord, TAA
PDUMV20-24 – 1.9kW Single-Phase, Vertical, 0U, 120V, Outlets (6) 5-15/20R, 24-in.
PDUMH15-RA – 1.4kW Single-Phase, Horizontal, 1U, 120V, Outlets (13) 5-15R, 100-127V input, 15ft Cord
PDUMV15-24 – 1.4kW Single-Phase, Vertical, 0U, 120V, Outlets (8) 5-15R, 5ft Cord, 24 in.
PDUMV15-36 – 1.4kW Single-Phase, Vertical, 0U, 120V, Outlets (14) 5-15R, 15ft Cord, 36 in.
PDU3MV6L2120 – 5.7kW 3-Phase, Vertical, 0U, 208/120V, Outlets (36) C13 & (6) C19 & (6) 5-15/20R, 6ft Cord, TAA
PDU3MV6L2130A – 8.6 kW 3-Phase, Vertical, 0U, 208V, Outlets (36) C13 & 9 (C19), TAA
PDU3XMV6G20 – 11.5kW 3-Phase, Vertical, 0U, 240-220V, (36) C13 & (9) C19, 415-380V Input, 6ft Cord
PDUMH30HVAT – 5.8kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 2U, 2 208/240V, Outlets (16) C13 & (2)C19 & (1) L6-30R, TAA
PDUMH16HV – 3.8kW Single-Phase, Horizontal, 1U, 200/220/230/240V, Outlets (8) C13 & (2) C19, 8ft Cord, AA
PDUMH32HV – 7.4kW Single-Phase, Horizontal, 2U, 230V, Outlets (2) C19 & (16) C13, 12ft Cord, TAA
PDUMV16HV – 3.84kW Single-Phase, Vertical, 0U, 200/220/230/240V, Outlets (32) C13 & (6)C19
PDU3XMV6G32 – 22.2kW 3-Phase, Vertical, 0U, 380/400V, Outlets (36) C13 & (6) C19, TAA
PDU3XMV6L2220 – 11.5kW 3-Phase, Vertical, 0U, 240V, Outlets (36) C13 & (9) C19, 415V input, 6ft Cord, TAA
PDUMH32-HVAT – 7.4kW Single-Phase Metered Automatic Transfer Switch, Horizontal, 2U, 2 230V, Outlets (16) C13 & (2)C19, TAA
