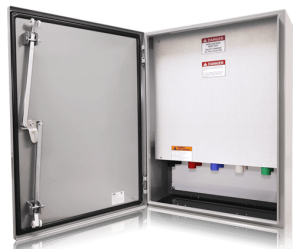

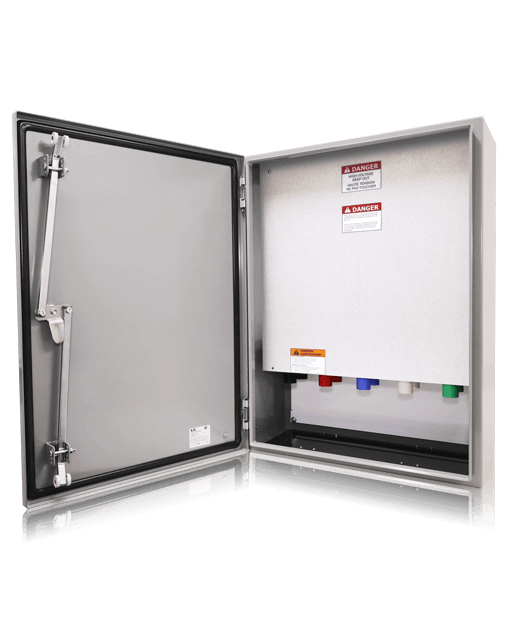

The ASCO Series 300 Quick Connect Power Panel provides a reliable, convenient, and economical way to connect a standby generator to support your critical infrastructure and keep your business operating. These units are available in models ranging from 400 to 4000 Amps, and are designed to provide years of trouble-free service.
The panels are listed to UL 1008, and together with an ASCO transfer switch, provides compliance to the 2017 NEC Section 700.3 requirement to provide a connection for a temporary source of power for maintenance or repair of the alternate source. When installed with an ASCO power transfer switch, you can be assured that your facility is protected by an economical solution that will reliably supply temporary power during a utility outage or maintenance work.
ASCO Series 300 Quick Connect Power Panel Features
- Listed to UL 1008 Transfer Switch Accessory standard
- Utilizes standard Cam-Lok™ receptacles for quick connection
- Standard Type 3R construction is weatherproof with or without cables
- Available with stainless steel enclosure for corrosive environments
- Lockable doors prevent unauthorized entry
ASCO Series 300 Quick Connect Power Panel Specifications
| Models | Ampere Size | Pole Count | Voltage | Enclosure Type | Height (in) | Width (in) | Depth (in) | Weight (lbs) |
| Wall, Floor or Pad Mount | 400A – 4000A | 2, 3 | 240V, 480V, 600V | Type 3R | 32 – 56 | 24 – 35 | 11 – 50 | 85 – 560 |
| Rating | Standard Connection Type | Mounting | Dimensions | Shipping Weight (lbs) | Internal Connection |
| 400A | Cam Lock (1 row) | Wall Mount | 24″w x 32″h x 11″d | 85 | Dual 2 AWG – 600 MCM Lugs |
| 800A | Cam Lock (2 rows) | Wall Mount | 24″w x 32″h x 11″d | 95 | Dual 2 AWG – 600 MCM Lugs |
| 1200A | Cam Lock (3 rows) | Floor Mount | 35″w x 56″h x 28″d | 475 | Copper Bus with ½” holes |
| 1600A | Cam Lock (4 rows) | Floor Mount | 35″w x 56″h x 28″d | 495 | Copper Bus with ½” holes |
| 2000A | Cam Lock (5 – 9 rows) | Pad Mount | 31″w x 39″h x 50″d | 205 | Single 2 AWG – 600 MCM Lugs |
| 2400A – 4000A | Cam Lock (6 – 10 rows) | Pad Mount | 48″w x 39″h x 50″d | Varies based on Amperage | Single 2 AWG – 600 MCM Lugs |
For more in-depth specifications, see the data sheet.
