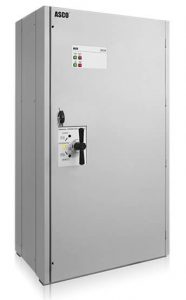

ASCO Series 300 Manual Transfer Switch

ASCO Series 300 Manual Transfer Switch is the perfect load transfer solution for commercial and municipal applications. The Series 300 Manual Transfer Switch can provide companies with a cost effective way to quickly connect a portable or temporary generator rather than buy a permanent generator. Installing a manual transfer switch and a connecting means can provide an adequate and cost effective solution. This solution can provide access for an alternate power source when a generator malfunctions or is removed from service for maintenance.

The Series 300 Manual Transfer Switch’s three-position center-off switch is robust and easy-to-use. It’s modular, compact design is easy to install and maintain and is designed to handle the demands of motors and high inrush currents

ASCO Series 300 Manual Transfer Switch Features

• Transfer Switches listed to UL 1008 standard for optional standby transfer switches; Service Entrance configurations listed to UL 891
• Dual-operator configuration provides 3-position switching with center-off position
• Switch design prevents simultaneous connection to two power sources
• Available from 150 to 3000 Amps, up to 600VAC, single or 3-phase
• Meets NFPA 110 standards for Emergency and Standby Power Systems and NEC® Article 700.3(F)
• 3-Position center-off switch is robust and easy-to-use
• Leverages ASCO’s reliable, field-proven, transfer switching technology
• Modular, compact design is easy to install and maintain
• Designed to handle the demands of motors and high inrush loads
• Service Entrance configurations available
• Available with solid neutral termination or switched neutral pole
• Available stainless steel enclosure for use in corrosive environments
• Auxiliary contacts indicate switch position – two contacts for Normal and two for Emergency
• IO Module for building management system integration
• Restriction of Hazardous Substances (RoHS) compliant

For more in-depth specifications, see the data sheet.
