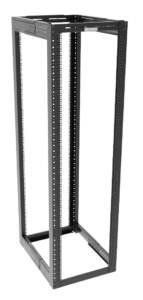

VRX Rack

The VRX Rack, by Great Lakes, is an adaptable and adjustable rack for universal use. The VRX has FMP Mounting (Flexible Mounting Profile) along the front and rear face of the channel that allows finger and accessory installation without occupying RMU.

The VPCB1 mounts to the side of the channel in a PDU or cable management orientation and the mounting pattern on top of rack allows runway to rest directly on the rack or accepts ladder rack brackets.

Couple that with ¼ turn “D” rings that can be mounted in any of the square hole patterns along the channel, horizontal or vertical, for ease of use. The variable depth side rails of the VRX provide variable depth in 1″ increments.

VRX Rack Features

• TAA Compliant
• Weight capacity: 2500 lbs.
• 45U, 52U and 59U
• #12-24 tapped or 3/8″ sq. (M6) channels (with RMU markings) for 19″ and 23″ mounting
• Square hole and FMP pattern along the front face of all rails accept “D” rings and fingers for horizontal cable support
• FMP pattern along the side and rear face of all rails accept additional cable management accessories and PDU mounting options
• Side rails provide variable depth in 1″ increments
• Self-squaring assembly with toe-in or toe-out orientation (Overall depth listed below is with toe-out footprint)
• Standards: UL2416, RoHS II

For more in-depth specifications, see the data sheet.
