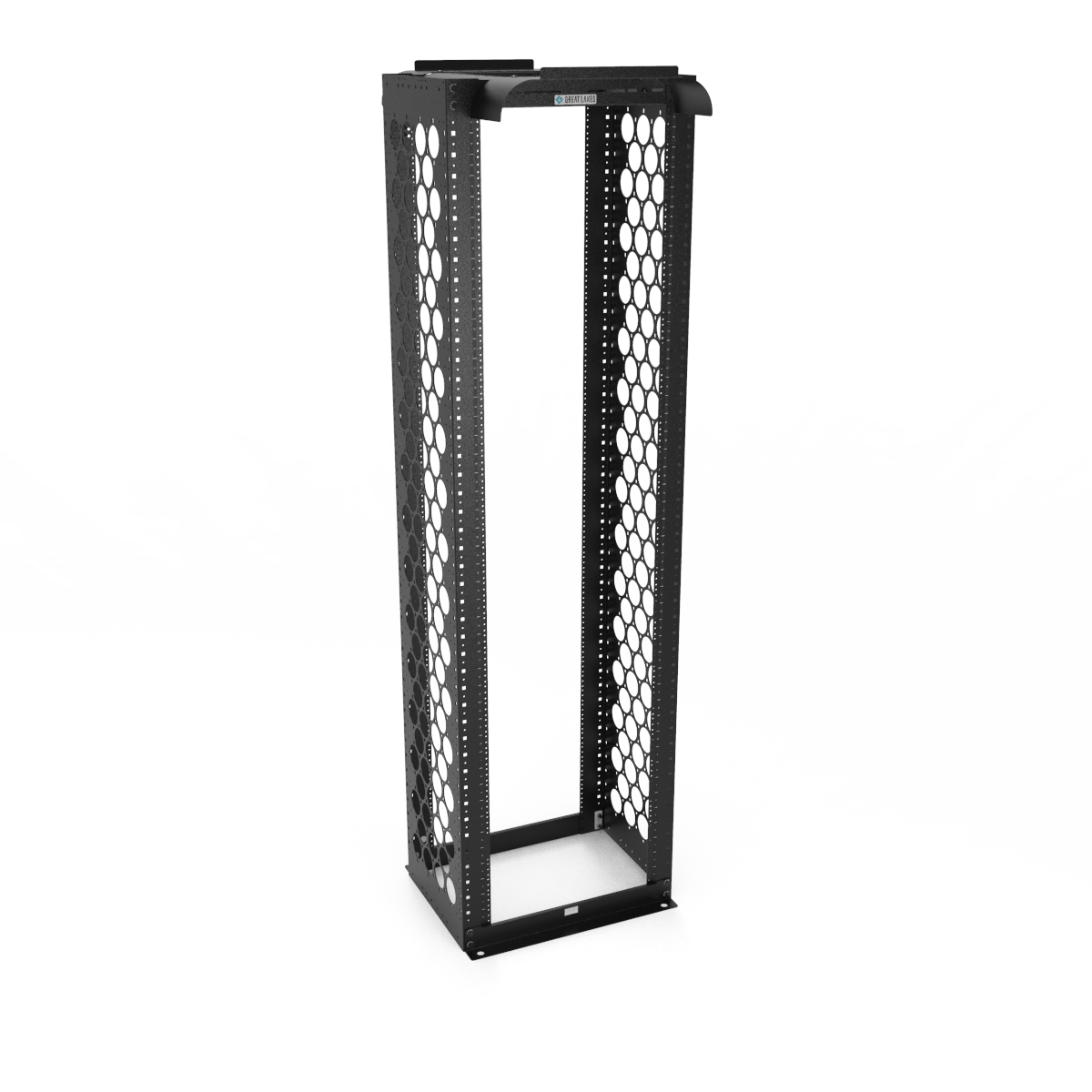

CMRX Rack

The CMRX Rack, by Great Lakes, offers exceptional cable management in a single rack. With channel pattern circles on staggered centers users have unlimited cable attachment points for cable bundles. The FMP Mounting (Flexible Mounting Profile) along the channel allows for optional finger and accessory installation without occupying RMU.

The CMRX has machine soldered connections that create a unit that is 3x more reliable than other industry units. And optional brackets attach to the side of the channel for button mounting PDUs. Integrated radius on brackets provide a smooth transition for cables from rack to overhead runway.

CMRX Rack Features

• TAA Compliant
• Weight capacity 2500 lbs.
• #12-24 tapped or 3/8″ sq. (M6) channels (with RMU markings) for 19″ and 23″ mounting
• Cable management pattern of 2.75″ circles on 3.25″ staggered centers allow for unlimited cable attachment points; square hole pattern between centers accept ¼ turn D rings; 20 rings included, 3.5″ x 5″
• Square hole pattern and FMP pattern along the front and rear face of channels accept D rings and fingers for horizontal cable support
• Four top waterfall brackets with 3″ bend radius; two fixed, two adjustable
• Cable runway or basket tray can rest directly on top of the rack or can be supported by optional ladder rack brackets
• Self-squaring assembly with toe-in or toe-out orientation (Overall depth listed below is with toe-out footprint)
• Standards: UL2416, RoHS II

For more in-depth specifications, see the data sheet.
