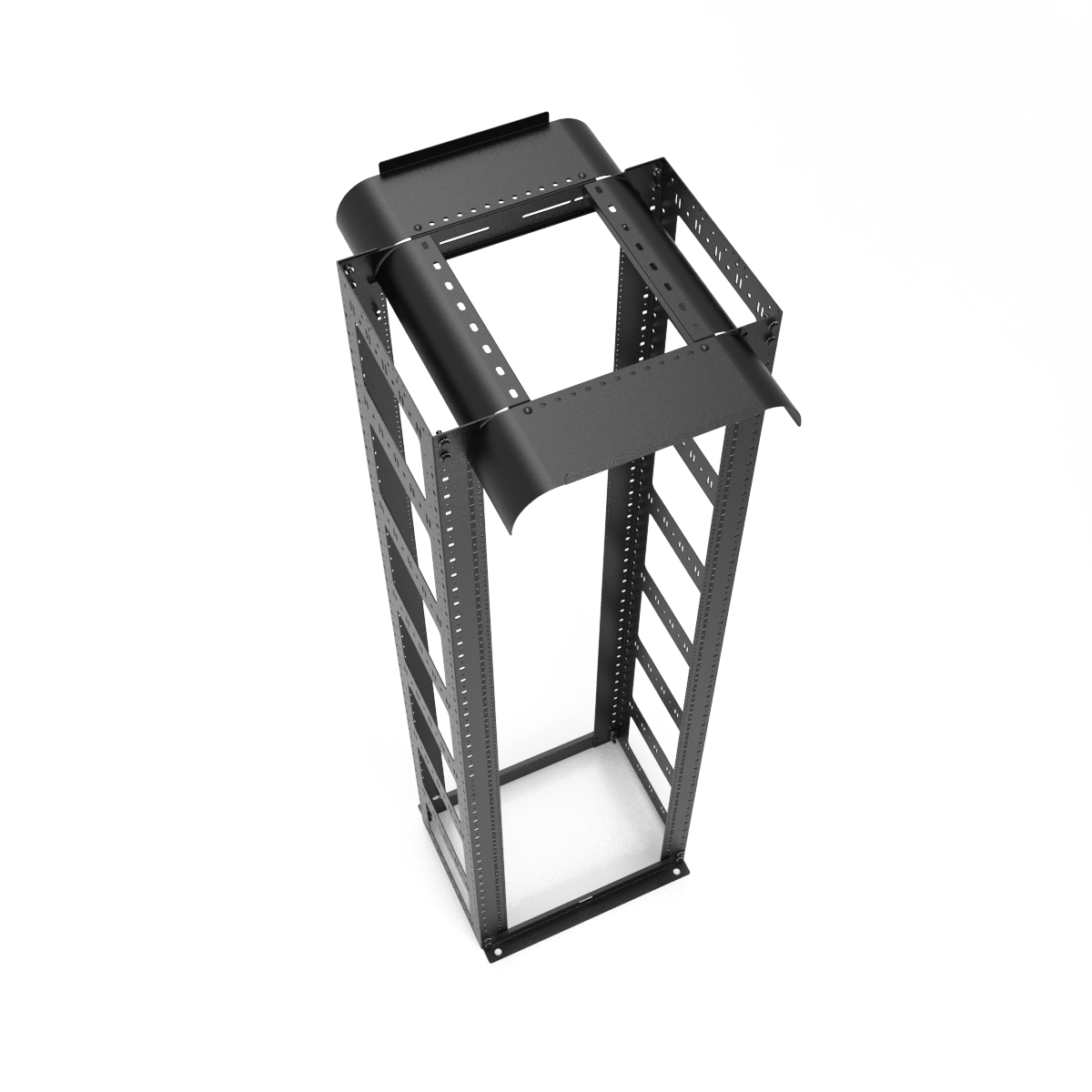

CMR Rack

The CMR Rack, by Great Lakes, boasts an open channel design for easy cable installation and routing. Large openings on the CMR provide space for cable maintenance and installation and easy cable pass-thru for routing cable inside or outside of the channel. Integrated radius on brackets provide a smooth transition for cables from rack to overhead runway. The mounting pattern on top of the brackets allow runway to rest directly on top of rack.

The self-squaring assembly has options for 19 or 23″ EIA mounting with no additional hardware required and ¼ turn “D” rings can be mounted in any of the square hole patterns along the channel, horizontally or vertically. FMP Mounting (Flexible Mounting Profile) along the front and rear face of the channel allows finger and accessory installation without occupying RMU.

CMR Rack Features

• TAA Compliant
• Weight capacity 2500 lbs.
• Height options: 45U, 52U, 59U
• #12-24 tapped or 3/8″ sq. (M6) channels (with RMU markings) for 19″ and 23″ mounting
• Square hole and FMP pattern along the front and rear face of channels accept ¼ turn D rings (20 rings included, 3.5″ x 5″) and fingers for horizontal cable support
• Large channel openings support side-to-side airflow and allow cable pass-thru
• Four top waterfall brackets with 3″ bend radius; two fixed and two horizontally adjustable
• Cable runway or basket tray can rest directly on top of the rack or can be supported by optional ladder rack brackets
• Self squaring assembly with toe-in or toe-out orientation (Overall depth listed below is with toe-out footprint)
• Standards: UL2416, RoHS II

For more in-depth specifications, see the data sheet.
