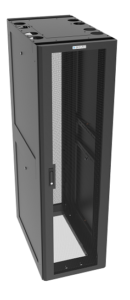

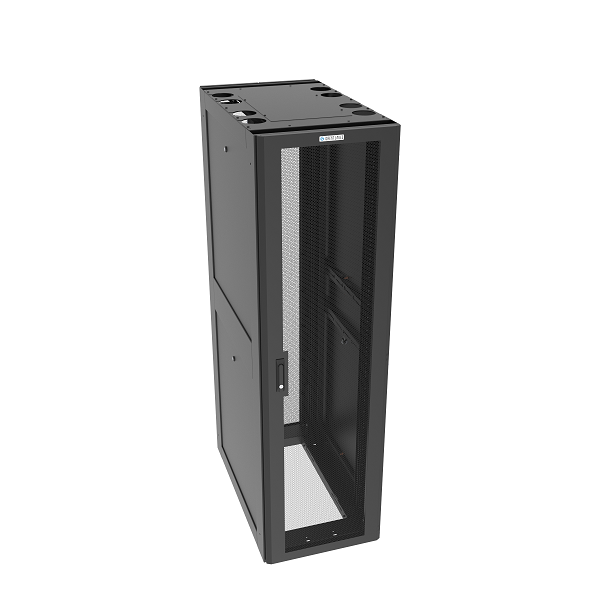

Seismic Zone 4 EZ Cabinet

The Seismic Zone 4 EZ Cabinet, by Great Lakes, is tested to protect against vibrations and seismic activity. The welded frame and mounting rails support 1500 lb. seismic weight capacity in Zone 4 geographic areas.

The 4 EZ has 4″ cable access locations along the top of the frame and a large open bottom for PDU cords and high density bundles. The half-height side locking panels are recessed and lightweight for easy installation and removal.

With security in mind the locking handle with 3-pt latch maximizes closure between the frame and the cabinet. Users can swap the handle with intelligent access control for increased security.

Seismic Zone 4 EZ Cabinet Features

• TAA Compliant
• Welded frame with 3/8″ sq. (M6) mounting rails (depth adjustable) to support 1500 lb. seismic rated wt cap. or 6000 lb. non-seismic wt. cap.
• PDU/Lacing bar installed in each rear corner; keyhole pattern to button mount PDUs and lacing points for optional cinch straps
• Mesh front and split mesh rear doors with 3-point locking swing handle
• Independently tested to meet Telcordia Technologies GR-63-CORE Network Equipment Building Systems (NEBS) requirements
• PDU/Lacing bar installed in each rear corner; keyhole pattern to button mount PDUs and lacing points for optional cinch straps
• Solid top panel can be interchanged with perforated, brush, and fan tops
• 4″ Cable access locations along the top of the cabinet
• Open bottom to facilitate large PDU cords and cable management bundles
• Standards: GR-63-CORE Certified (GL52UG2EZ-3048), Other sizes conform to GR-63-CORE, RoHS II

Seismic Zone 4 EZ Cabinet Specifications

Height: 42U – 52U
Width: 24″ and 30″
Depth: 42″ and 48″

For more in-depth specifications, see the data sheet.
