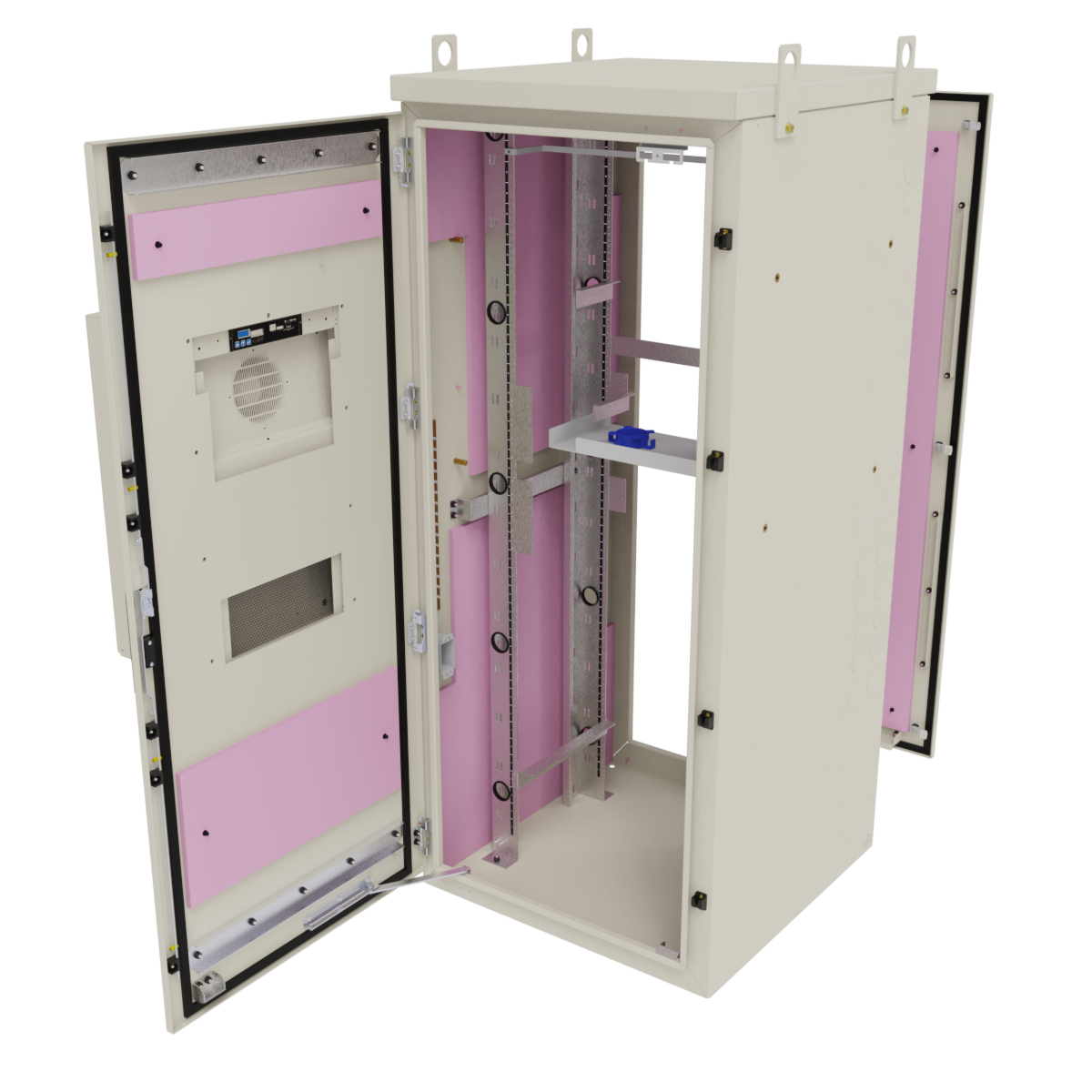

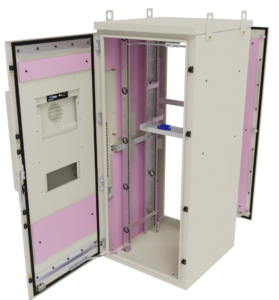

NEMA 3 5G Cabinet

NEMA 3 5G Cabinet, by Great Lakes, 39 RMU, 23″ EIA, offers flexibility of mounting, airflow, and cable management options make the 5G cabinet suitable for a multitude of industrial, telecom, and broadband applications.

Great Lakes manages an intensive inventory program to ensure each cabinet is configured with cable management, power, and grounding equipment and accessories. All customer specified components are installed, wired, and tested at Great Lakes so that a configured cabinet arrives at the service provider’s warehouse and is ready for specialized rack mount equipment.

Great Lakes offers NEMA rated outdoor solutions that have multiple security options and are built to withstand tough environmental conditions. Great Lakes manufactures TAA compliant data racks, cabinets and containment solutions in the USA. Their robotic manufacturing and almost endless options means that they can offer the best fit for most data centers and outdoor applications.

NEMA 3 5G Cabinet Features

• 75″H x 32″W x 32”D
• Front door with locking ¼ turn handle with hex key and hasp for optional padlock
• Hinged front door with 90° opening and wind stop
• Removable back panel with hex key quarter turn locks
• Configure front door with 6k BTU AC unit or heat exchanger; additional cooling options available
• Two pair of 23″ EIA, 39 RMU, #12-24 tapped mounting rails, fixed placement; galvanized, uncoated material; 19″ EIA rails available
• Includes 23 to 19″ reducer brackets
• Various punch electrical knockouts on both sides for greater flexibility
• Installed electrical components include: 16 position tin plated copper bus bar; 24 position phoenix connector with uncoated mounting plate; GFCI duplex and junction box (120V, 15A)
• Multiple rack mount accessories included, but not installed; see description on reverse for list
• Solid bottom panel with 4 anchor holes
• NEMA 250 Type 3, UL508A Listed
• TAA Compliant

For more in-depth specifications, see the data sheet.
