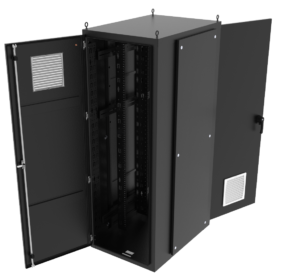

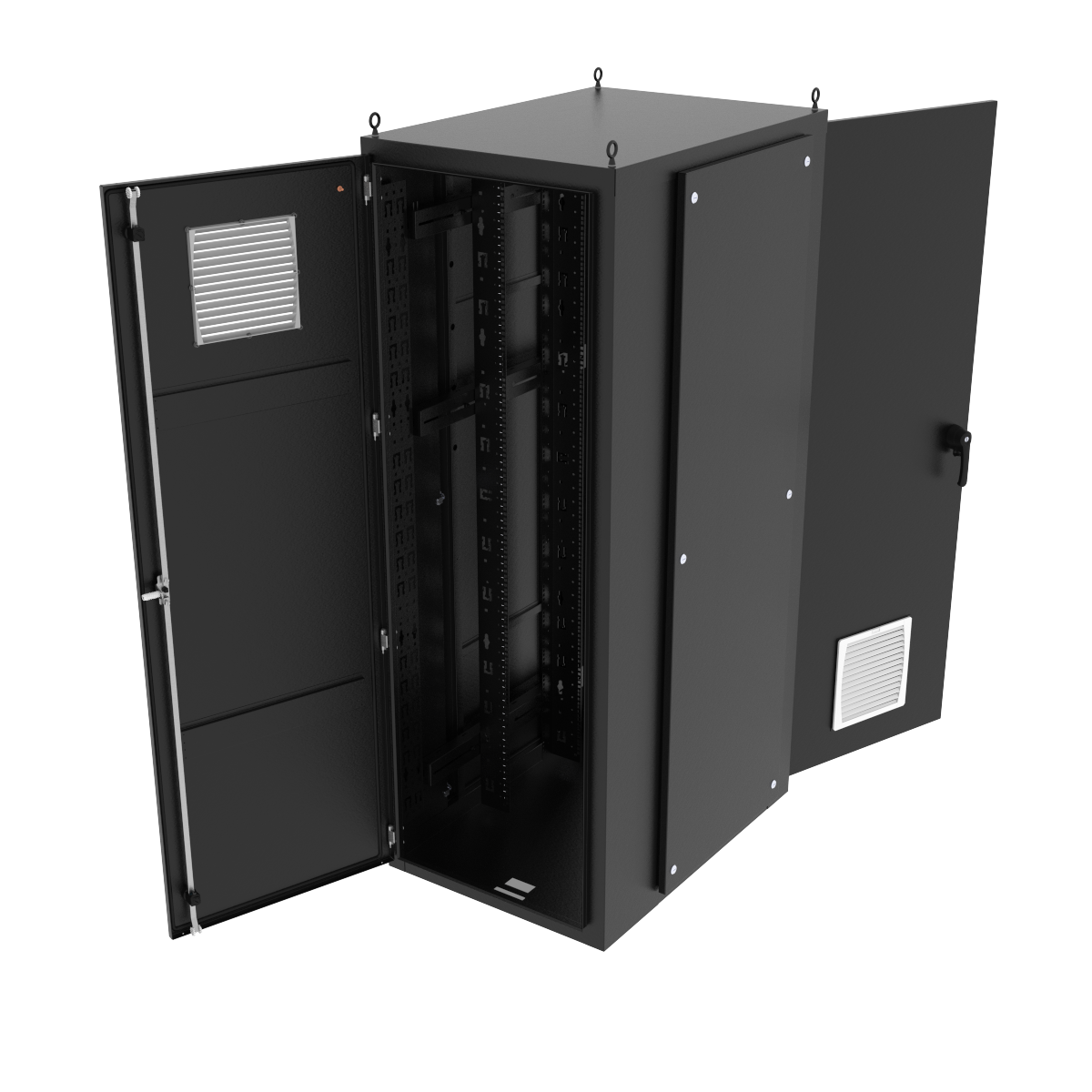

NEMA 12 Cabinet

The NEMA 12 Cabinet, by Great Lakes, is designed to protect data in harsh environments with it’s sturdy construction and is available in 24″ and 30″ width models.

Great Lakes offers NEMA rated outdoor solutions that have multiple security options and are built to withstand tough environmental conditions. Great Lakes manufactures TAA compliant data racks, cabinets and containment solutions in the USA. Their robotic manufacturing and almost endless options means that they can offer the best fit for most data centers and outdoor applications.

NEMA 12 Cabinet Features

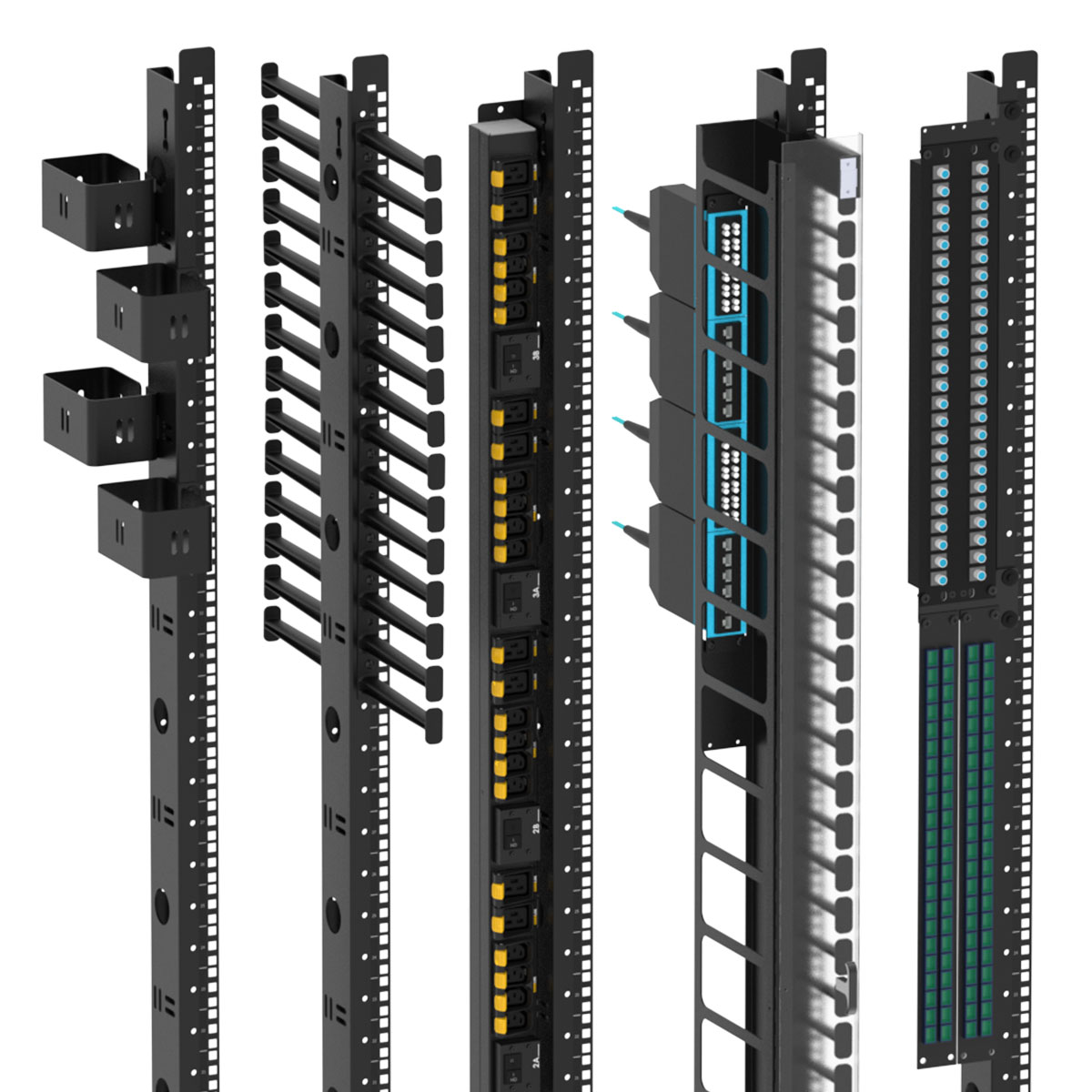

• Depth adjustable mounting rails; choose 3/8″ sq. (M6) or tapped #10-32 (30″W cabinets feature Flexible Mounting Profile for zero-U accessory mounting)
• 30″W cabinets feature rails that can be set to 19″ or 23″ EIA mounting; no additional hardware or parts needed
• Front intake and rear exhaust gland plates on doors for fan/filter assemblies
• Internal baffle kit facilitates airflow: conditioned air is directed to equipment intake while exhaust is returned to the AC unit for increased efficiency
• Vertical lacing bar with keyhole pattern for button mounting PDUs and obround pattern for cinch straps (one welded in each rear corner)
• Swing handle (with hasp option) and three-point latch maximizes compression between the door and cabinet
• Four top, lifting eye bolts

NEMA 12 Cabinet Specifications

• NEMA Data Cabinet
• 84″H x 30″W x 42″D
• 45 RMU
• 42″ Usable Depth
• 34″ Max. Rail Spacing
• 5000 lb. Weight Capacity (bolted to floor)
• Color: Black
• Includes: Frame with welded top and bottom; Solid front and rear doors; 295 CFM fan/filter assembly; Solid (2) side panels; 3/8″ sq. (M6) mounting rails with package of hardware
• NEMA 250 Type 12, UL508A, RoHS II
