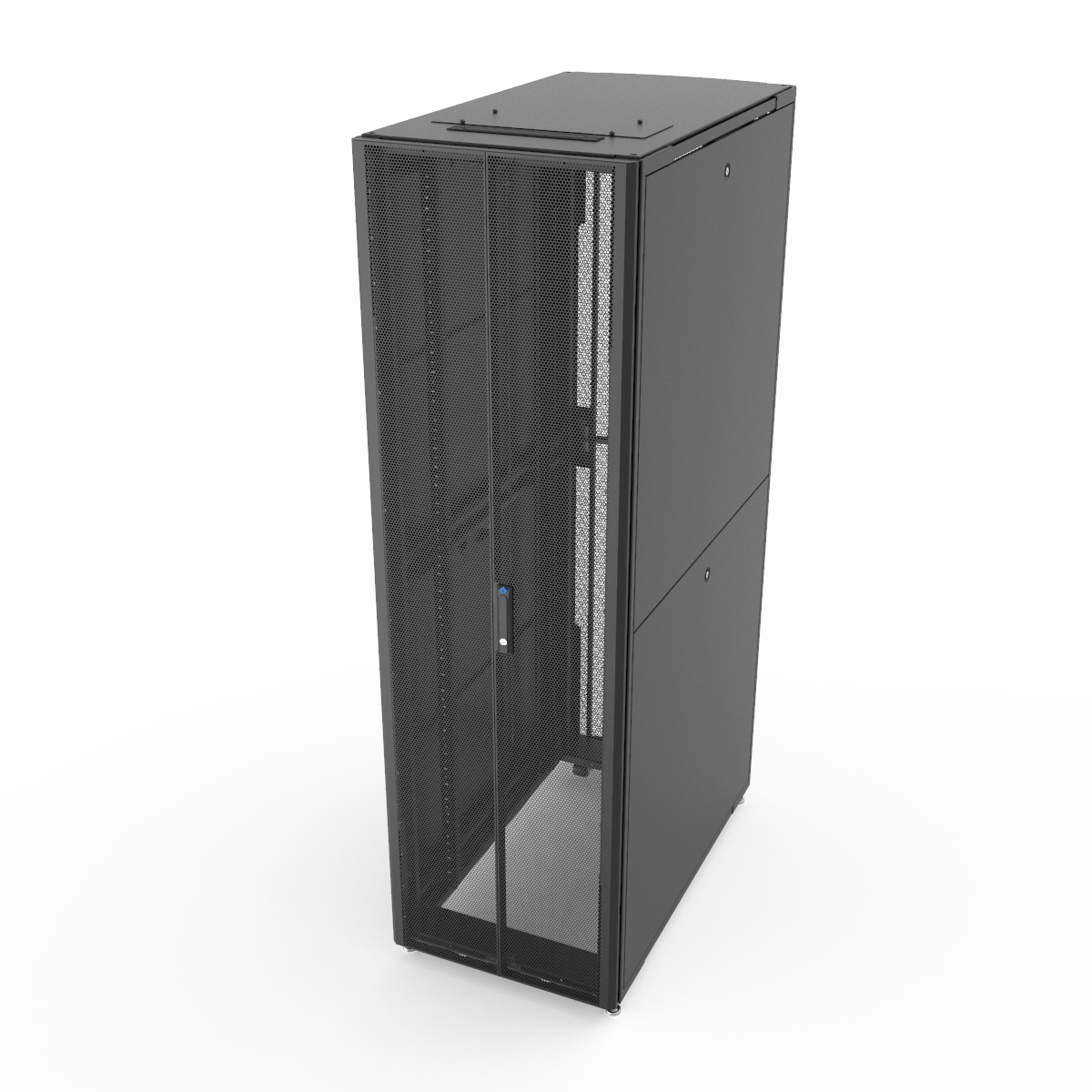

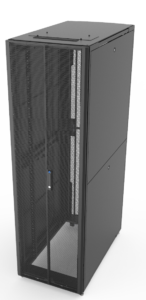

The L Cabinet, by Great Lakes, is s series of standard cabinets for data communications applications. Great Lakes’ cabinet line offers security, configurability and quick deployment. These cabinets offer flexible mounting systems, cable management, and air flow technology.
The L offers a Top Gland Plate for use for cable access or to install the optional fan assembly. The Rail Mount PDUs or slide rail along the cabinet side braces to easily reposition for vertical cable management. The rail depth easily adjust rails with depth marking along all side braces
L Cabinet Features
- Frame with two pairs of 19″ EIA mounting rails with RMU markings – Two pairs of 3/8″ sq. (M6) rails installed
- Single PDU/cable management rail with keyhole pattern for button mounting PDUs and lacing point pattern for cinch straps
- Solid top panel
- Half-height solid side panels with locks
- Adjustable levelers (2.5″H) and casters installed
- Front mesh door with locking swing handle
- Rear split mesh door with locking swing handle
- 3000 lb. weight capacity
- Standards: UL2416, RoHS II
L Cabinet Specifications
Height: 22U to 47U
Width: 24″ – 34″
Depth: 42″, 48″
For more in-depth specifications, see the data sheet.
For more information about Great Lakes Racks and Cabinets,
call 86 21 5859 8677 or email sales@alphaenertech.com.
