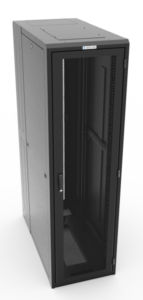

ES Cabinet

The ES Cabinet, by Great Lakes, offers integrated features and optional accessories and is a versatile cabinet capable of supporting shifting critical infrastructure: power, airflow, cable management, and security. It is a single platform that grows with the evolving needs of any data center or computer room.

Choose from 16 in-stock sizes, pick popular configurations or configure a cabinet with the doors, sides, and tops that you want. There are hundreds of mounting points throughout the cabinet to install, reposition, and reconfigure accessories. The fully welded frame and
12 gauge mounting rails support a max static weight capacity of 4000 lbs. (3300 UL rating).

Great Lakes Racks and Cabinets are manufactured in the USA. These TAA compliant data racks, cabinets and containment solutions are manufactured using robotic manufacturing which provides almost endless options to offer the best fit for most data centers and outdoor applications.

Their cabinet line offers security, configurability and quick deployment. These cabinets can be designed to protect against seismic activity and offer flexible mounting systems, cable management, and air flow technology. Their NEMA rated outdoor solutions have multiple security options and are built to withstand tough environmental conditions.

ES Cabinet Specifications

• Height: 24U to 52U
• Width: 12″-32″
• Depth: 42″-48″
• Color: Black or Arctic White
• Complete Cabinet Includes: Welded frame with two pair of 19″ EIA, 3/8″ sq. (M6) mounting rails (with RMU markings and FMP), two pair of PDU brackets, pair of solid side panels, solid top panel, front and rear door as configured (each with a locking handle)
  and 2.5″ levelers; UL2416

For more in-depth specifications, see the data sheet.
