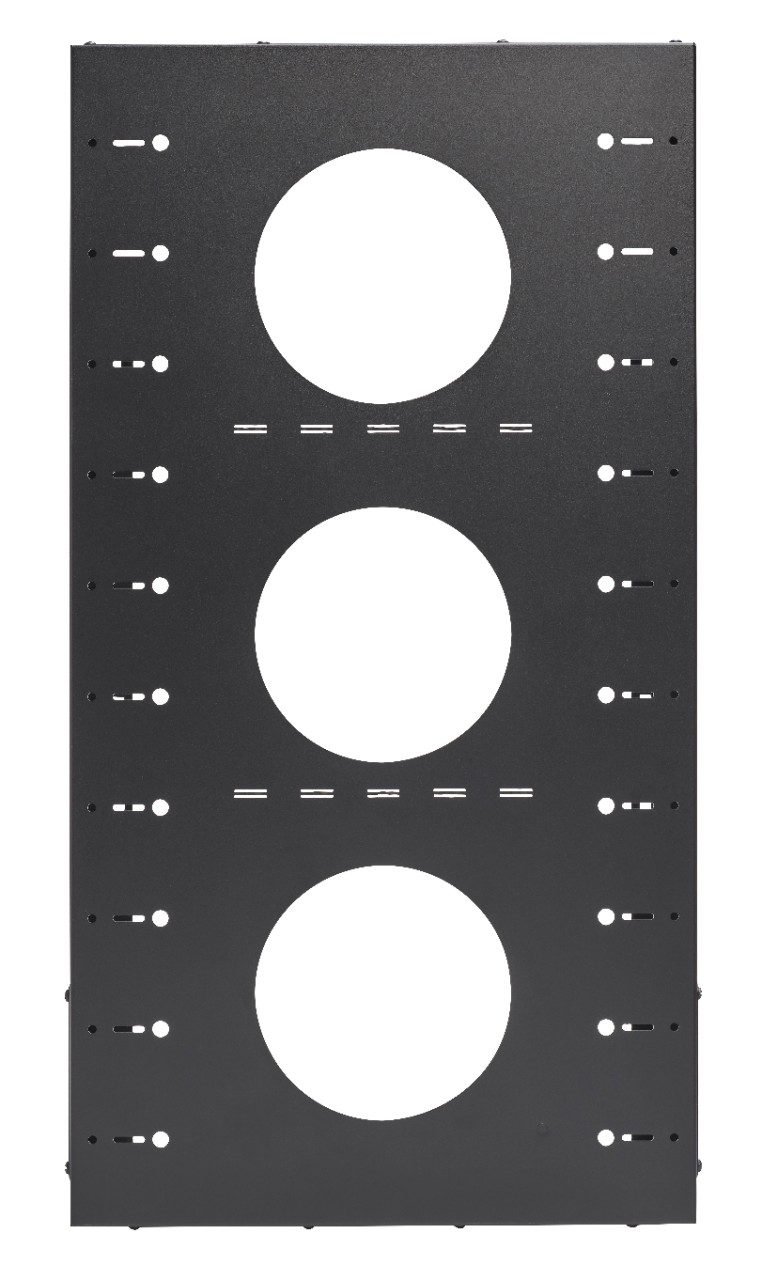

MiniRaQ Convertible Wall Mount Rack Enclosure

Enclosures | IT and Data Center Enclosures | Eaton MiniRaQ | MiniRaQ Convertible Wall Mount Rack Enclosure

Rugged, low-profile design capable of being upgrade to MiniRaQ securreThe MiniRaQ Convertible wall mount rack enclosure, by Eaton, is the ideal vertical wall-mount enclosure when flexibility in the current application or for the future is required. It’s rugged, low-profile design, capable of being upgrade to MiniRaQ Secure, is capable of supporting up to 400 pounds in a compact footprint. The MiniRaQ provides an edge solution for customers looking for a reliable wall-mount rack enclosure capable of fitting into confined spaces. With 50 percent smaller footprint than competitive solutions, MiniRaQ wall-mount cabinet is ideal for network closets and edge applications.

MiniRaQ Convertible Features

  • 4U dedicated space for patch panel
  • Bonus 2U equipment space internal to backplate
  • Upgradeable to MiniRaQ Secure Compact
  • Modular design guarantees installation can be performed by one technician, reducing installation costs and time to deploy
  • Unsurpassed weight capacity allows up to 400 lbs. of critical equipment to be installed
  • Large cable access openings on the top, bottom, and sides of the backplate provide increased cable and conduit routing flexibility
  • 50 percent smaller footprint makes the MiniRaQ an ideal solution for network closets and other small, non-traditional applications
  • The optional high-velocity, multi-fan module ensures critical networking equipment stays cool

MiniRaQ Convertible Specifications

ModelDescriptionDimensions
H x W x D in.
Net weight
  Convertible Compact
ETN-MRQ351V06No side panels and backplate (4.5″ deep)31.0 x 19.6 x 4.525 lbs.
ETN-MRQ351V082U side panels and backplate (4.5″ deep)31.0 x 19.6 x 8.334 lbs.
ETN-MRQ351V104U side panels and backplate (4.5″ deep)31.0 x 19.6 x 11.837 lbs.
ETN-MRQ351V126U side panels and backplate (4.5″ deep)31.0 x 19.6 x 15.341 lbs.
ETN-MRQ351V148U side panels and backplate (4.5″ deep)31.0 x 19.6 x 18.844 lbs.
ETN-MRQ351V1610U side panels and backplate (4.5″ deep)31.0 x 19.6 x 22.347 lbs.
  Convertible Tall
ETN-MRQ301V06No side panels and backplate (4.5″ deep)38.1 x 19.6 x 4.525 lbs.
ETN-MRQ301V082U side panels and backplate (4.5″ deep)38.1 x 19.6 x 8.334 lbs.
ETN-MRQ301V104U side panels and backplate (4.5″ deep)38.1 x 19.6 x 11.837 lbs.
ETN-MRQ301V126U side panels and backplate (4.5″ deep)38.1 x 19.6 x 15.341 lbs.
ETN-MRQ301V148U side panels and backplate (4.5″ deep)38.1 x 19.6 x 18.844 lbs.
ETN-MRQ301V1610U side panels and backplate (4.5″ deep)38.1 x 19.6 x 22.347 lbs.

For in-depth specifications, see the data sheet.
