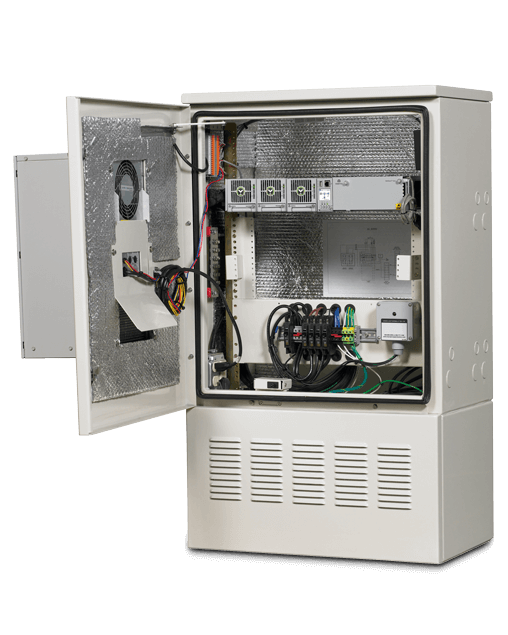

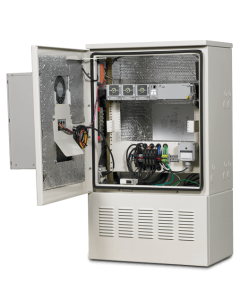

The Vertiv XTE 601E Sole Enclosure offers thermal management, battery backup and room for wireless carrier equipment to meet your small cell application needs. The Vertiv XTE 601E Series is a full featured modular line of outdoor enclosures ideal for use in macro cell site and C-RAN applications.
Vertiv XTE 601E equipment enclosures are designed to house DC power, network electronics and battery backup equipment in a single enclosure. To provide maximum protection for your equipment investment, 601E enclosures are built and tested to withstand extreme environmental conditions. Electronics and batteries are kept at proper operating temperature by either a door mounted heat exchanger (HX) or an air conditioner, depending on the model. Two Thermal Electric Coolers (TECs) manage battery temperature on the HX version. An environmental controller maximizes cooling effectiveness, while minimizing energy usage and noise. An optional externally-mounted overvoltage protection (OVP) unit accommodates up to (3) OVP indoor shelves and includes a 20-position DC distribution shelf, sealed hybrid cable entry, fiber storage, and an alarm block. This frees up equipment space in the main enclosure and prevents tower technicians from accessing the batteries and network electronics.
Vertiv XTE 601E Benefits
- Accommodates up to two battery boxes, which can be interchanged with adjustable equipment rails
- Door mounted heat exchanger or air conditioner for thermal management
- Heat exchanger option requires two Thermal Electric Coolers (TECs) to manage battery temperature
- AC distribution options vary from splice/junction boxes to externally mounted AC load centers with AC surge protection
- Rear cable-entry compartment
- Can be equipped with NetSure™ or 3rd party DC power systems with optional DC surge protection that protects the entire DC output bus
- Support for 15 kW DC generator input, if required
- Bottom rear cable entry
- Telcordia GR-487 certified, Seismic Zone 4 rated, and UL Listed
Vertiv XTE 601E Specifications
| Model | Description | Height (in / mm) | Width (in / mm) | Depth (in / mm) | Weight (lbs / kgs) |
| Vertiv XTE 601E, Sole Enclosure | Accepts DC power, HX or HVAC, Ni-Cd or VRLA | 48″ / 1219 | 28″ / 711 | 28″ / 711 | 235 / 107 |
For more information about Vertiv XTE 601E,
call 86 21 5859 8677 or email sales@alphaenertech.com.
