Newmar Rackmount Battery Trays and Shelves

Enclosures | Indoor Telco and Battery Racks | Newmar Rackmount Battery Trays and Shelves

Newmar Rackmount Battery Trays and Shelves include battery trays, adjustable equipment rack shelves and ventilated equipment rack shelves. These trays and shelves are manufactured by Newmar, a leading manufacturer of high-quality communication power products for over 50 years.

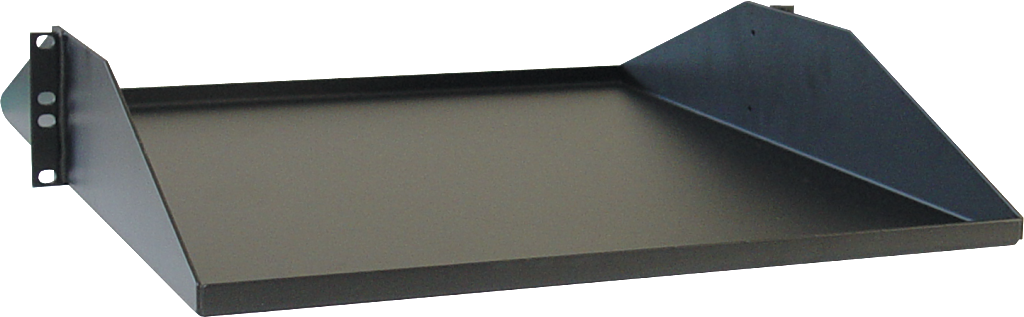

Newmar Rackmount Battery Trays and ShelvesNewmar Rackmount Battery Trays Features

  • Heavy gauge cold rolled steel trays fit standard 19” racks
  • Ideal for holding up to four 100 amp-hour front terminal batteries
  • Powder coat finish
  • Mounting hardware supplied
  • 23” trays also available in various depths

Battery Tray Specifications

ModelTray AreaWeight CapacityColorsShip Weight
T 19″ x 19″17.25″ x 19.04″350 lbsBlack12 lbs
T 19″ x 21″17.25″ x 22.3″400 lbsBlack or Gray17 lbs

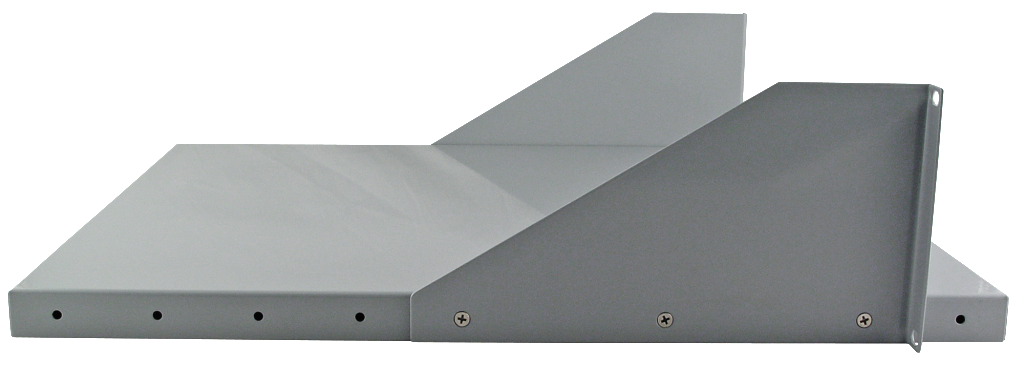

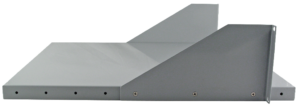

Newmar Adjustable Equipment Rack Shelves FeaturesNewmar Adjustable Equipment Rack Shelves Features

  • Fits standard 19” racks
  • Adjustable depth for balancing and desired front projection
  • 16 gauge cold rolled steel with powder coated finish
  • Flanged sides for added strength
  • Supports up to 200 lbs.
  • Mounting hardware included

Adjustable Equipment Rack Specifications

ModelShelf AreaWeight CapacityColorsShip Weight
S 19″ x 16″ Adjustable17.56″ x 16″200 lbsBlack or Gray10 lbs
S 19″ x 20″ Adjustable17.56″ x 20″200 lbsBlack or Gray11 lbs

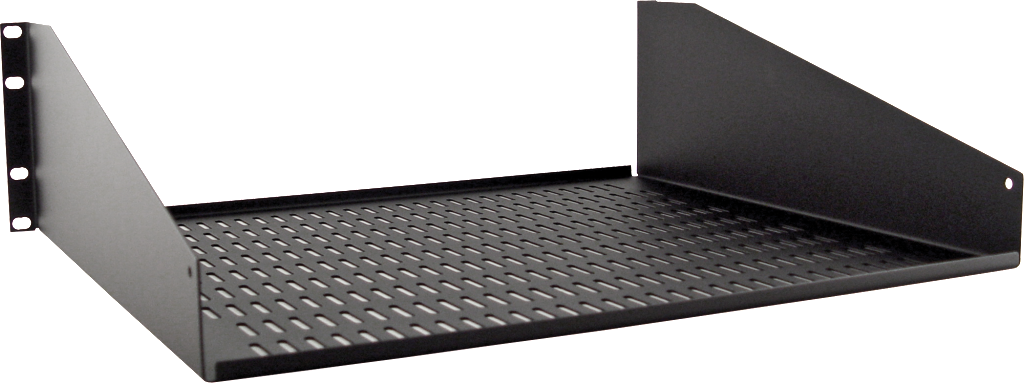

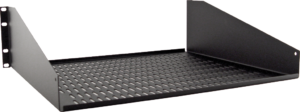

Newmar Ventilated Equipment Rack ShelvesVentilated Equipment Rack Shelves Features

  • Fits standard 19” racks
  • Vent holes in tray bottom allow air flow to cool equipment
  • 16 gauge cold rolled steel with powder coated finish
  • Supports up to 150 lbs
  • Mounting hardware included

Ventilated Equipment Rack Shelves Specifications

ModelShelf AreaWeight CapacityColorsShip Weight
S 19″ x 16″ Ventilated17.5″ x 14.87″150 lbsBlack or Gray10 lbs


For more information about Newmar Rackmount Battery Trays,
call 86 21 5859 8677 or email sales@alphaenertech.com.
