Vertiv XTE 201 Series

Vertiv XTE 201 Series are compact power, equipment and battery enclosures designed for small cell sites at the network edge. This series of enclosures is specifically designed for small cell applications where DC power is required to support your network equipment. The power cabinets not only house the DC power system, but also have 1 RU of room for ancillary network equipment. They can be paired with a separate battery enclosure in a variety of pole mount configurations. With its DC power output and backup capacity in a compact, maintenance-free design, the XTE 201 Series fully support your distributed remote radio deployments.

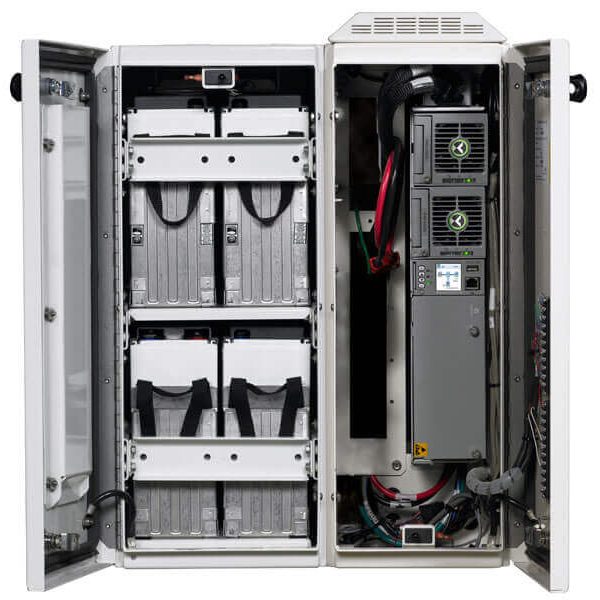

Separate side-loading power/equipment and battery enclosures are designed for small cell sites at the network edge. These versatile enclosures can be pole, pad, H-frame or wall mounted. The power cabinet includes a 19″ wide NetSure 502 DC power system, AC and DC surge protection devices, integrated AC distribution (with generator inlet plug), and 7-position ground bar. It also accommodates 1.5 RU of 19″ customer equipment. The generator inlet is easy to access from the bottom of enclosure and the alarm block is readily available on the door.

The battery cabinet holds one 48 V string of Ni-Cd batteries. Vents on the door and back panel prevent buildup of battery outgassing. This enclosure can be mounted separately from the power enclosure; or directly to the power enclosure, either in side-by-side or vertical stack configurations.

Vertiv XTE 201 Series Features

• Integrated NetSure 502 system delivers DC power up to 2325 watts.
• Designed to fully power multiple remote radio units.
• High efficiency 2000 watt eSure™ rectifiers reduce power consumption.
• Supports Ethernet & SNMP communication interfaces for remote monitoring & control.
• Extremely wide AC voltage range.
• Tamper-proof 1/4 turn latches on door can be padlocked.
• Pole, pad, H-frame or wall mountable.
• Power cabinet – Solar shields can be mounted to the top and side of the power enclosure to reduce internal temperatures.
• Battery cabinet accommodates (1) 48 V string of Ni-Cd batteries with vent baffles on the door to protect batteries from water and dust and additional ventilation to
  dissipate heat and prevent outgassing buildup.

XTE 201 Specifications

For more in-depth specifications, see the XTE 201 Series data sheet.
