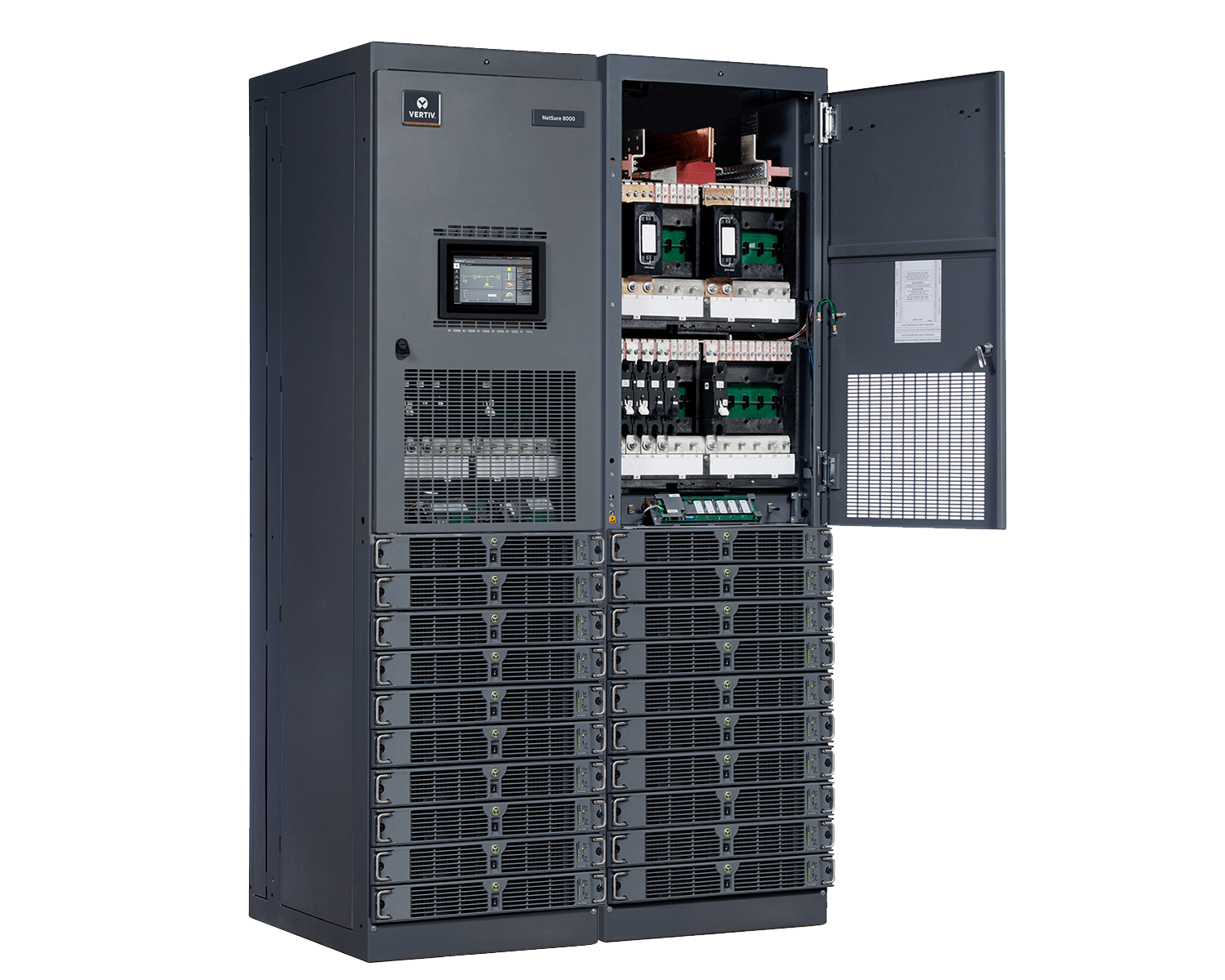

Vertiv NetSure 8200 Series

Vertiv NetSure 8200 SeriesVertiv NetSure 8200 series high-density power systems offer increased flexibility in centralized or distributed architecture applications. 200 amp rectifiers deliver up to 20,000 amps of power at -48 VDC. Individual power and distribution bays may be configured to meet any application requirement. These modular bays are designed to support wireless and wireline applications including, central offices, MTSOs, data centers and head-ends.

The NetSure 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.

Vertiv NetSure 8200 Series Features

  • Design delivers power conversion, distribution, and control and monitoring in a single bay
  • Dedicates existing cabling and breakers to a single rectifier via an integrated AC distribution panel
  • Minimizes installation time with built-in monitoring for all distribution devices
  • Advanced security features available including HTTPS/SSL, complex login credentials, or Radius user authentication
  • Numerous connectivity options support integration into a wide variety of networks – IPv4, IPv6, SNMP V2c and V3, Modbus, TL1 and multi-browser compatibility
  • Easily monitor and adjust system parameters through an intuitive user interface available remotely and locally on a 10-in touchscreen display
  • NEBS Level 3 certified
  • Integrated internal DC bus, in combination bays, eliminates costly overhead busses and eases plant expansion
  • Optional integrated AC
  • Power Distribution Service Cabinet (PDSC) for protected bulk AC service feeds with 22 or 65 kAIC breakers
  • Supports distributed and bulk plant architectures

Vertiv NetSure 8200 Series Specifications

ModelsPower CapacityCurrent CapacityOutput Voltage, NominalInput Voltage, NominalHeightWidthDepthWeight (lbs)
NetSure 82001 MW20,000 A48 VDC208 or 480 VAC, 3-phase7 ft24″30″995 lbs w/rectifiers
