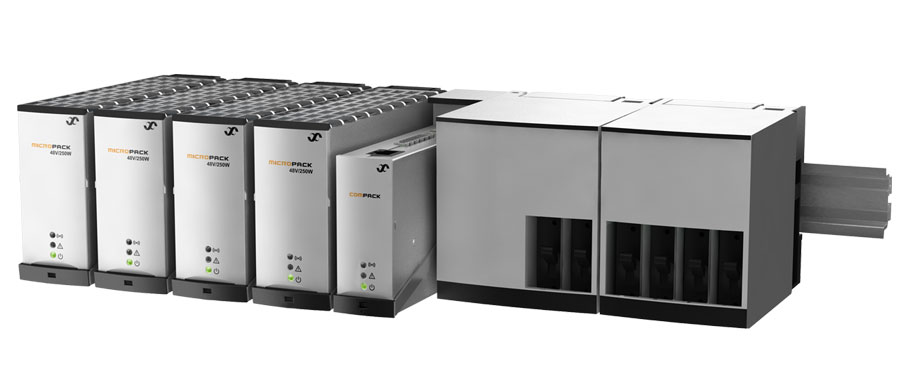

Compact, full-featured DIN rail power system, the Eltek Micropack System is convection cooled and designed for less power hungry applications, but still with system functionality options to match any requirements. Use as stand-alone or in a flexible off the shelf configurable system.
The Eltek Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
Click Here for additional technical specifications
Eltek Micropack System Features
- Compact and shallow (149 mm deep)
- Din rail mountable
- On-site configurable
- Off the shelf delivery
- Stand-alone option (w/alarm relay)
- Plug-in breakers or bulk output
- Accepts 85 – 300 VAC/DC input
- 12, 24-30, 48 VDC output versions
- Ethernet for remote and local monitoring and control via WEB Browser
- SNMP protocol with TRAP, SET and GET on Ethernet. Email of TRAP alarms
- 3 digital programmable relay outputs
- 3 programmable multipurpose inputs (“digital inputs”, battery midpoint or analog signals)
Micropack System Applications
- Telecom
- LTE/femto cells
- Small
- Fixed & mobile broadband
- FTTx
- Power utilities
- Control & protection
- Scada
- Communication
- Railway infrastructure
- Control & protection
- Signaling
