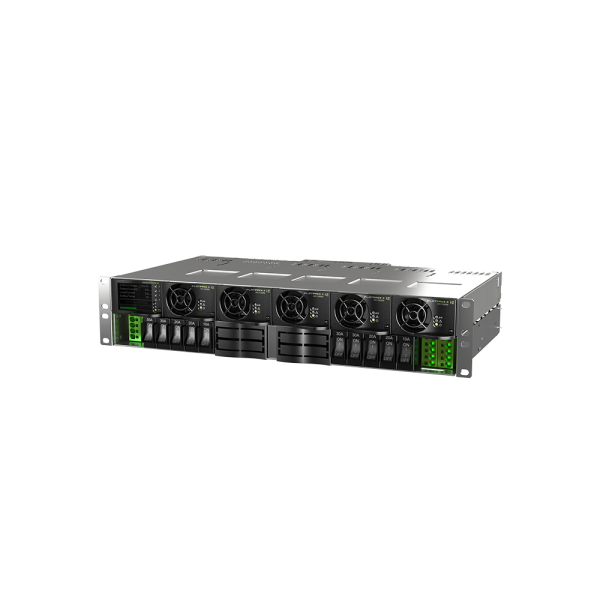

The Eltek Flatpack S 2U Compact and High Efficiency DC Power System, 2U System, -48V/200A, is a small power-dense system based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifier and Smartpack S controller ensures safe, reliable and environmental friendly operation.
The shallow depth makes it suitable for most cabinets. The Flatpack S family is the key for future needs such as increasing network speed demands and flexible and expandable DC Alpha Ener Tech. This system boasts a small size, high efficiency, reliability and wide range of communication. Popular configurations may be available with short lead times.
The Eltek Flatpack S 2U system is an optimal footprint for applications where space is limited – both in racks and various cabinet installations. The Flatpack S 2U is a two rack-unit high system that delivers 48V DC power to telecom infrastructure. The compact size of the system makes it perfect for use in 19″ wide racks and cabinets. Built as a plug-and-play system, the Flatpack S 2U reduces installation time and enables cost-effective deployment.
Eltek Flatpack S 2U Key Features
- Complete system
- SmartpackS controller
- High efficiency rectifiers
- Battery and Load distribution
- 270 mm system depth
- 2U height
- Hot pluggable rectifiers and controller
- Advanced control and monitoring through ethernet port
- 4 large breaker positions for battery and load
- 10 x 30AMCB distribution
- Push-in front connection
- LVBD included, LVLD (optional)
Eltek Flatpack 2U Specifications
- 2U System, -48V/200A output, rear wire, LVBD
- 19″ / 2RU / Mid or flush mount
- Individual AC inputs, total 6 inputs, rear access
- 6 Rectifier positions, compatible with 48V/1800W and 48V/1000W Rectifier
- 10 GMT Fuse positions, Terminal block, 60A Total load, Rear connection
- 4 Load Breaker Positions (Up to 100A), Rear access
- Load bulk output, rear access
- 2 Battery breaker positions (Up to 100A), rear access
- Shunt and LVBD contactor on battery circuit
Eltek Flatpack S 2U Applications
- 4G/LTE
- FTTX
- Distributed antenna systems (DAS)
- Microwave broadband
- Cable broadband
- Telephony servers and switches
- Fiber-optics
For more information about Eltek products,
call 86 21 5859 8677 or email sales@alphaenertech.com.
