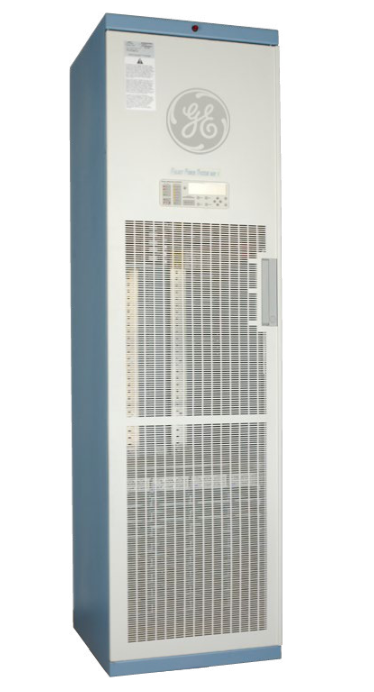

OmniOn GPS 4827 Large DC Power Plant

ABB GPS 4827 Large DC Power PlantThe OmniOn GPS 4827 Large DC Power Plant capitalizes on the product strengths found in the GPS4848 and Infinity product families by integrating the highly efficient Infinity TEZ rectifier platform and the time tested distribution found in the GPS4848 to create the GPS4827 Infinity Power System.  Utilizing the 1RU 50A or 75A 48V rectifiers; a fully equipped bay only requires 15.75 inches of rack space for 9 rectifier shelved allowing for as much as 2700A of rectifiers and 48 inches of distribution.  With this increased density, a single bay GPS4827 system provides capacity and distribution for most small and medium applications while retaining all the features found with the larger GPS4848.

Note: OmniOn Power was formerly ABB/GE Critical Power

OmniOn GPS 4827 Features and Benefits

  • 1-phase, 3-phase low line 240Vac input as well as 277 phase to neutral operation
  • Now available with either 50 or 75 Amp rectifiers
  • Rectifier efficiencies exceeding 94%
  • Up to 2700 Amp charge capacity per bay with 75A rectifiers
  • System Capacity of 5400A

For more in-depth specifications, see the GPS 4827 Product Information.
