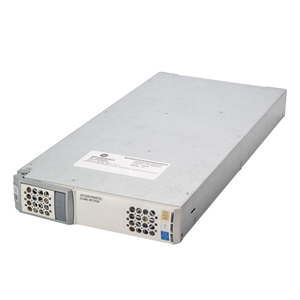

The OmniOn GP100 Rectifier (3-Phase ) provides a hands-off solution to phase balancing. A true breakthrough in the power supply game, the 3-phase, 1RU GP100 is the smallest 3-phase, 6kW rectifier available and significantly reduces the amount of rack space chewed up by power supplies. When side by side, the GP100 packs 12kW of power in 1RU— the highest power-to-size conversion technology ever developed for 19” rack mount applications. The GP100 offers more real estate in the racks and more power.
Note: OmniOn Power was formerly ABB/GE Critical Power
OmniOn GP100 Rectifier Features
- 1U Profile with only 17.5″ Depth
- 3ph Power Densities in excess of 28W/in³
- Constant Current Characteristic
- N+1 Redundance / Hot-Swap Operation
- 5VSB @1A Standby Voltage
- Dual I²C or RS485 Interfaces
- Active Load Sharing, Remote On/Off and sense functions
OmniOn GP100 Rectifier Specifications
- Universal AC input
- -10°C to +75°C Operations Temperature
- NEBS GR-63-CORE Level 4
- IEC/UL/CSA/EN60950-1, CE Mark (LVD), TUV
- FCC-A & EN55022-A at Rack Level or with Filter
- Several mating shelves and controller options available
For more information about the GP100 3-Phase Rectifier,
call 86 21 5859 8677 or email sales@alphaenertech.com.
