Liebert XD refrigerant-based cooling modules deliver high-density cooling with highly flexible configurations for floor-mount, rack-mount and ceiling-mount applications. The Liebert XD system can reduce the data center’s air conditioning energy consumption by 30% when utilized as a supplemental cooling and up to 70% when deployed as the primary cooling. Implementing the Liebert XD solution requires 15%-50% less chiller plant capacity as well as less diesel generator and switch gear capacity resulting in a potential energy savings of 40-50% for your centers energy consumption.
Note: Liebert is now Vertiv
Liebert XD Refrigerant-Based Cooling Modules Features
- High heat-density cooling modules
- Mount above, between or on racks
- Use pumped refrigerant technology
- Available in nominal capacities of 160kW (46 tons) for 60 hz applications and 130kW (37 tons) for 50 hz applications
- Highly efficient
- Require little or no floor space
- Cools more than 30 kW per rack
- Highly scalable expansion without interrupting cooling operations
XD Refrigerant-Based Cooling Modules Specifications
| Models | Height (in) | Width (in) | Depth (in) | Weight (lbs) |
|---|---|---|---|---|
| Liebert XDV, XD Racktop Cooling Module, 8.8-10kW | 14-19 5/8 in | 22 7/8 in | 39 1/2 in | 77 lbs |

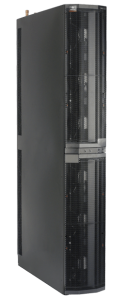

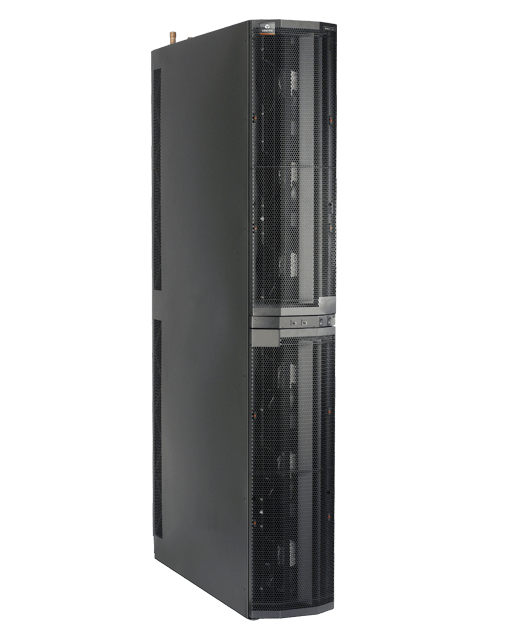

| Liebert XDH, 22-30kW | 80 in | 12 in | 42 in | 233-246 lbs |
| Liebert XDO, XD Overhead Cooling Module, 17.2-20kW | 22 1/2 in | 24 1/8 in | 72 1/4 in | 150 lbs |
