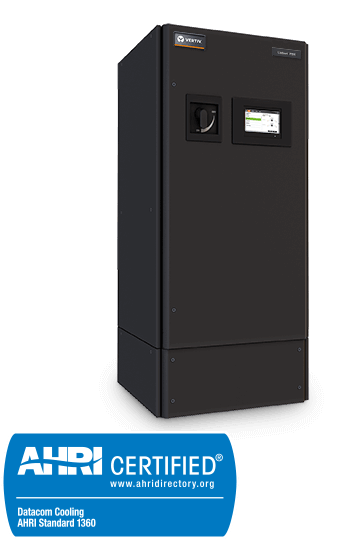

Liebert PCW Chilled Water Cooling System, 11-29kW, offers the industry’s highest efficiency, protection and capacity per footprint for server room cooling. network closets and other small space air conditioning.
The Liebert PCW is highly configurable and available in a wide range of capacities. The units feature variable speed EC fans that reduce motor energy usage by 10-30%, compared to standard AC motors, and are more efficient than centrifugal blowers even when operating at 100% fan speed. The units feature motorized control valves that control water flow and are managed by the Liebert iCOM unit control to maintain the desired cooling capacity. The Liebert PCW offers unique, floor-level air discharge that reduces the mixing of hot and cold air to improve efficiency. Downflow models provide front, left side and right side discharge and upflow models provide front and rear return options.
Note: Liebert is now Vertiv
Liebert PCW Compact Chilled Water Cooling System Benefits
- 25% more efficient than the industry-standard Liebert® Challenger™ 3000 in DX configuration and more than twice as efficient as the Liebert Challenger 3000 in chilled water configuration
- Compliant with U.S. Department of Energy minimum efficiency standards for data center equipment
- Industry-leading Liebert iCOM™ unit control with advanced algorithms for air temperature and fan speed coordination
- EC Fans reduce motor energy usage by 10-30%, compared to standard AC motors. More efficient than centrifugal blowers even when operating at 100% fan speed
- Unique, floor-level air discharge configuration reduces mix between hot and cold air, improving efficiency
- Self-optimizing features and advanced controls fine-tune system operations for fewer adverse events and longer equipment life providing availability approaching 100%
- Liebert iCOM unit control provides access to system status, operations and event log and maintenance history
- Advanced freeze and pressure routines to prevent icing on coils and locked out compressors
Liebert PCW Compact Chilled Water Cooling System Specifications
| Models | Total Nominal Capacity kBtuh [kW] | Net Sensible Capacity kBtuh [kW] | Nominal Airflow [CFM] | Height (in) | Width (in) | Depth (in) | Weight (lbs) |
| PW011, 11kW | 37.5 [11] | 38 [11.1] | 2000 | 77 9/16 | 34 1/2 | 34 5/8 | 575 |
| PW017, 17kW | 58 [17] | 54.3 [15.9] | 3500 | 77 9/16 | 34 1/2 | 34 5/8 | 600 |
| PW029, 29kW | 98.9 [29] | 90.5 [26.5] | 4800 | 77 9/16 | 34 1/2 / | 34 5/8 | 650 |
