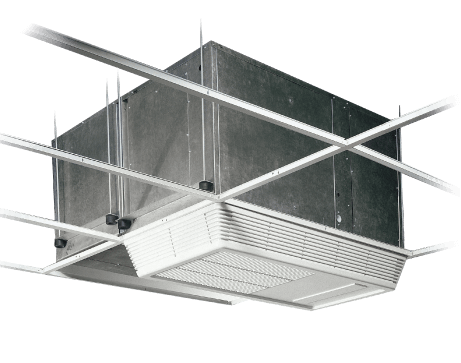

Liebert Mini-Mate Ceiling-Mounted Precision Cooling System, 3.5-28kW, is a zero footprint computer room cooling system the provides 24×7 temperature and humidity control and air filtration. It installs above a dropped ceiling and is easy to service, requiring only front access for maintenance. When IT equipment needs precision cooling and humidity control, but floor space is limited, the Liebert Mini-Mate can provide the overhead answer. This flexible, space-saving system is the ideal solution for small areas where space is at a premium.
The Vertiv Liebert Mini-Mate is designed for data center cooling, humidity control and air filtration of small areas, such as computer, control and equipment rooms. The system installs above a dropped ceiling, is easy to install and service and requires only front access for maintenance. The Liebert Mini-Mate is available in nominal cooling capacities from 3.5 to 28 kW (1 to 8 tons), with air, water, glycol and chilled water models available in 50 and 60 Hz. All chilled water systems are self-contained units. Air, water and glycol cooled models are available in split-system configurations.
Liebert Mini-Mate Ceiling-Mounted Precision Cooling System Benefits
- High Sensible Cooling Capacity. Unlike “comfort” air conditioners, Liebert systems are designed for the cooling requirements of electronic equipment – 80% of the capacity dedicated to the removal of dry “sensible” heat, and 20% for the control of humidity.
- Based on a field-proven system, the Liebert Mini-Mate is manufactured with rugged, efficient components. To ensure 365 days x 24 hours operation at your site, each system is factory tested.
- Uses Zero Floor Space. The evaporator and indoor condensing units are mounted above the dropped ceiling, requiring minimal site disturbance.
- Simple Control. Split systems require simple thermostat-type wiring to controls and condensing units.
- Designed For Easy Component Access. Most units can be serviced from the front.
- Option Kits. Single-point power kits, sweat adapters, condensate pumps, duct adapters and other options are ordered as kits, ensuring availability of required parts and complete compatibility with your system.
Liebert Mini-Mate Ceiling-Mounted Precision Cooling System Specifications
Models | Total Nominal Capacity kBtuh[kW] | Net Sensible Capacity kBtuh [kW]* | Nominal AirflowCFM] | Height (in ) | Width (in ) | Depth (in) | Weight (lbs) |
MMD12E, 3.55kW | 12.1 [3.55] | 12.1 [3.55] | 600 | 30 | 58 | 27 | 220 |
MMD18E, 4.85kW | 16.5 [4.85] | 16.5 [4.85] | 600 | 30 | 58 | 27 | 225 |
MMD23C, 3.80kW | 13.0 [3.80] | 13.0 [3.80] | 750 | 20 | 54 | 30 | 220 |
MMD24E, 5.7kW | 19.5 [5.70] | 19.5 [5.70] | 885 | 24 | 57 3/16 | 30 | 225 |
MMD36E, 8.3kW | 28.4 [8.3] | 28.4 [8.3] | 885 | 24 | 57 13/16 | 30 | 225 |
MMD40C, 7.60kW | 26.0 [7.60] | 26.0 [7.60] | 1250 | 24 | 54 | 30 | 230 |
MMD60E, 16.4kW | 55.8 [16.4] | 55.8 [16.4] | 2500 | 24 | 49 | 46 1/2 | 498 |
MMD8TC, 22.5kW | 76.6 [22.5] | 76.6 [22.5] | 3750 | 26 1/2 in | 69 1/2 in | 54 1/8 in | 665 lbs |
MMD96E, 24.9kW | 84.9 [24.9] | 84.9 [24.9] | 3750 | 26 1/2 | 69 1/2 | 54 1/8 | 665 |
