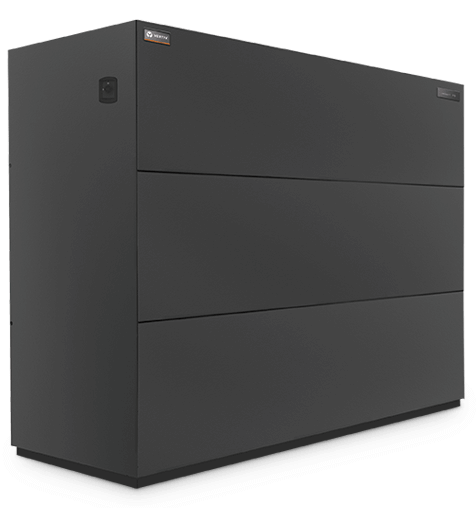

The Vertiv Liebert Series PB Indoor Condenser (Piggyback), 16-98.4kW, supports indoor applications where outdoor heat rejection is not practical, such as high-rise buildings or areas with restricted access.
Liebert Series PB Indoor Condenser Features
- Indoor condenser matched to Liebert brand cooling systems
- Available in ten models ranging from 16 to 98.4kW (4.6 to 28 tons), 60Hz or 50Hz.
- Connects easily
- Installs adjacent to the cooling unit with through-the-wall ductwork; remote locations up to 150 feet are also possible.
- Single or dual circuit models
- Operates at outdoor temperatures as low as -30°F (-34.4°C) with included Liebert Lee-Temp system
- Double width, double inlet, balanced centrifugal fan with sealed, permanently lubricated bearings. standard dual v-belts.
- Integral electrical panel that houses fuses, motor starters and overloads
- Small footprint
- Flexible configurations, with front or top air discharge.
- Rugged construction and less wear and tear
- Easy installation – delivered fully wired, piped and tested
- Supports fast plan approval and building inspection with CSA agency approval
PB Indoor Condenser Specifications
| Models | Height (in/mm) | Width (in/mm) | Depth (in/mm) | Weight (lbs/kgs) |
| PB | 76-85 / 203-216 | 40-120 / 102-305 | 40-45 / 102-114 | 575-1630 / 261-739 |
