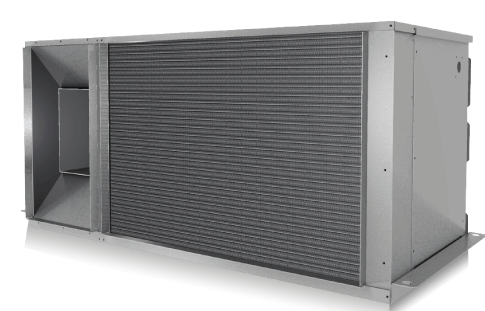

The Vertiv Liebert MCD Indoor Condenser Unit, 7-28kW, is an indoor, air-cooled condenser that works with the Liebert Mini-Mate2 and Liebert DataMate.
Liebert MCD Indoor Condenser Features
- Air-cooled or water/glycol-cooled split system condensing units
- Zero footprint ceiling mounted
- Delivers fully wired, piped and tested
- Provides hot gas bypass
- Uses scroll compressor with internal vibration isolation mountings, pressure safety controls and built-in overload protection
- Runs efficiently at partial load conditions
- Reduces compressor start/stop cycles and component wear
- Quiet operation
MCD Indoor Condenser Specifications
| Models | Height (in / mm) | Width (in / mm) | Depth (in / mm) | Weight (lbs / kgs) |
| MCD24A,MCD36A,MCD26W,MCD38W | 22.5 / 572 | 50.25 / 1276 | 22.75 / 578 | 175-240 / 79-109 |
