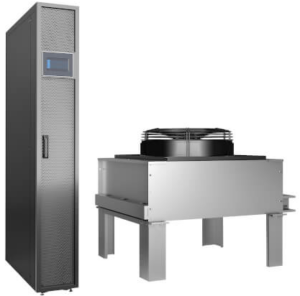

In-Row SmartRack SRCOOLDXRW25

Tripp Lite In-Row SmartRack SRCOOLDXRW25 offers close-coupled cooling for IT Equipment. This In-Row Precision Cooling System, 25.8 kW (88,000 BTU), 3PH, 208V, 42U, 300mm, from Tripp Lite, by Eaton, provides robust cooling in a space-saving footprint for small to medium data centers and high-performance computer room. A direct expansion (DX) cooling system pulls unconditioned air through the rear of the unit, cools it with condensed refrigerant and delivers it to equipment loads with up to 88,000 BTU/hr and nearly 2,950 CFM airflow.

The SmartRack SRCOOLDXRW25 cabinet is just 300 millimeters wide, making it easy to position optimally within a row for precision close-coupled cooling. It requires the same front and rear clearance as a standard rack enclosure. The inverter compressor and EC fan technology automatically regulate cooling output to match heat load and conserve energy during off-peak hours, making this a highly efficient solution. In addition, the SRCOOLDXRW25 is sized for your small-to-medium data center at virtually any density, saving you the cost of a raised floor or an overbuilt/overprovisioned CRAC unit. It uses eco-friendly R410A refrigerant, reflecting your commitment to environmental responsibility.

A built-in controller detects and manages data center temperatures, automatically adjusts cooling levels and supports various control modes. Intelligent temperature control and variable speed technology allow precise airflow and temperature adjustment to match specific load requirements closely without wasting energy on overcooling. The pre-installed WEBCARDLXMINI Network Interface offers 24/7 remote access. You can manage temperatures, receive alerts, review logs and control settings 24/7 via HTTP(S), menu/CLI via SSH/Telnet and SNMP for integration with management software platforms such as DCIM.

The modular, in-row cabinet design easily facilitates expansion or movement on its built-in casters, allowing your increasing cooling needs to be reconfigured as your data center grows. A simple redundancy model (N+1) is built in as part of the number of scalable units to be deployed.

SmartRack SRCOOLDXRW25 Features

• Cools mission-critical equipment with up to 25.8 kW (88,000 BTU/hr) of high-precision in-row cooling power
• Slim 300 mm profile allows maximum cooling while taking up little space
• Close-coupled design improves energy efficiency by 25% over traditional CRACs
• User-friendly color touchscreen allows complete access to data and status information
• Configurable side and/or front airflow discharge and maintenance mode capability
• Hot swappable fans
• 1-year limited warranty

SRCOOLDXRW25 Specifications
