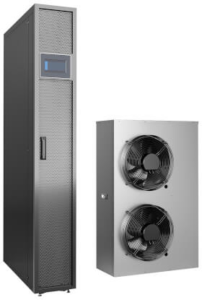

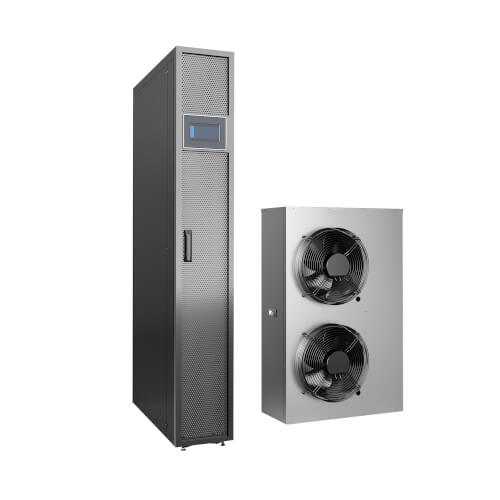

In-Row SmartRack SRCOOLDXRW12

Tripp Lite In-Row SmartRack SRCOOLDXRW12 Precision Cooling System, 12.8 kW (43,686 BTU/hr), 3PH, 208V, 42U, 300mm, provides robust cooling in a space-saving footprint for small data centers and high-performance computer rooms. The SRCOOLDXRW12 is a direct expansion (DX) cooling system that pulls unconditioned air through the rear of the unit and cools it with condensed refrigerant. Its modular design allows configuration as cooling needs change. A simple redundancy model (N+1) is built in as part of the number of scalable units to be deployed.

Monitor and access system configuration and status information with the pre-installed WEBCARDLXMINI Network Interface that offers 24/7 access. The built-in controller detects and manages data center temperatures, automatically adjusts cooling levels and supports various control modes. Intelligent temperature control and variable speed technology allow precise airflow and temperature adjustment to match specific load requirements closely without wasting energy on overcooling.

The SmartRack SRCOOLDXRW12 cools your mission-critical equipment in a small footprint. The cabinet is 300 millimeters wide, making it easy to position optimally within a row for precision close-coupled cooling. It requires the same front and rear clearance as a standard rack enclosure.

It’s inverter compressor and EC fan technology automatically regulate cooling output to match heat load and conserve energy during off-peak hours, lowering your overall energy costs and lengthening the lifespan of the equipment being cooled. The close-coupled design captures heat at the source to improve energy efficiency by 25% over traditional perimeter CRACs. It uses eco-friendly R410A refrigerant, reflecting your commitment to environmental responsibility.

SmartRack SRCOOLDXRW12 Features

SRCOOLDXRW12 Specifications
