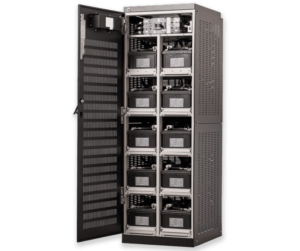

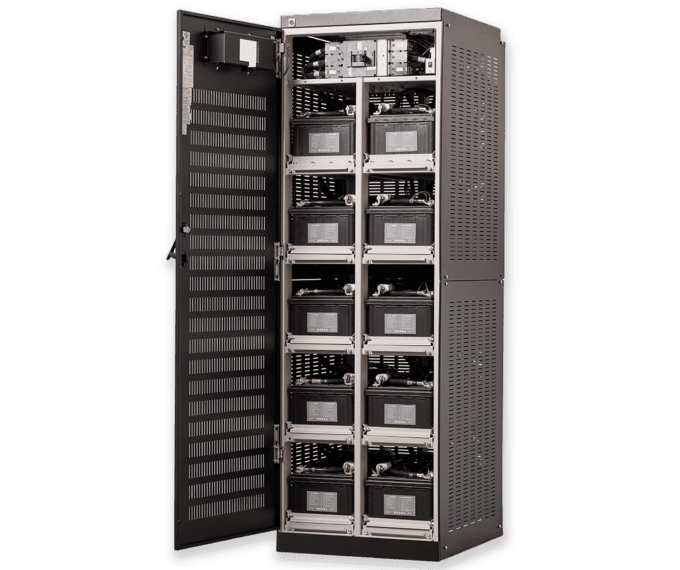

The ZincFive BC Series UPS Battery Cabinets are the first nickel-zinc battery energy storage solution with backward and forward compatibility and megawatt class uninterruptible power supply (UPS) inverters. ZincFive’s nickel-zinc technology offers a smaller footprint, minimal maintenance, no thermal runaway, as well as the highest reliability and widest operating temperature range, and is ideal for mission-critical data centers.
Benefits of Nickel-Zinc Batteries
- Offer superior power density, a low total cost of ownership and twice the typical industry-required cycle life when compared to other battery options, and all in a small footprint.
- Have no thermal runaway or travel restrictions and contain no hazardous materials.
- The most environmentally friendly option. Made with safe and abundant materials and have no VOCs.
- Saves up to 6 times more GHG emissions compared to Li-ion batteries and up to 4 times more GHG emissions than Lead-acid or Gel batteries.
- The carbon payback of the NiZn is between 0.16 and 0.21 years, while the carbon payback for all other batteries exceed one year.
- Ability to operate at high temperatures.
ZincFive BC Series Battery Cabinet Features
- Industry-leading safety with no thermal runaway
- Depleted NiZn cells remain conductive, enabling reliable string operation
- High power density in a light-weight package
- Module level monitoring, string level management
- Over/under current, voltage, and temp protection
- Easy maintenance pullout battery trays
- Seismic IBC 2018 rated, highly durable cabinet design
- Highly effective charge control across multiple inverter platforms
ZincFive BC Series Specifications
Model | ZincFive BC Series UPS Battery Cabinet 481V ZF37A6SU22IA | ZincFive BC Series UPS Battery Cabinet 494V ZF38A6SU22IA | ZincFive BC Series UPS Battery Cabinet 507V ZF39A6SU22IA |
Electrical | |||
Nominal Voltage Range | 481 Vdc | 494 Vdc | 507 Vdc |
Charge Voltage Range | 552 Vdc to 566 Vdc | 567 Vdc to 581 Vdc | 582 Vdc to 596 Vdc |
Charge Method | BMS adapts lead-acid charge profile to nickel-zinc charge profile and subsequent intermittent boost charge | ||
Min. and Max. Charge Current | 20 A min.; 160 A max. | ||
Standard Charging Current | 80 A | ||
Charge Time | Ranges from 2 hours to 5 hours for 0-100% SOC, dependent on charge current | ||
Low Voltage Cutoff | 370 Vdc | 380 Vdc | 390 Vdc |
Nominal Capacity C/2 at 25°C | >80 Ah | ||
Nominal Energy Storage at C/2 | 37 kWh | 38 kWh | 39 kWh |
Battery Chemistry | NiZn with starved, KOH aqueous electrolyte (Alkaline, no acid) | ||
Maximum Discharge Current | 800 A | ||
Single String Battery Configuration | 37 Battery modules in a single string per cabinet (37S1P) | 38 Battery modules in a single string per cabinet (38S1P) | 39 Battery modules in a single string per cabinet (39S1P) |
Operating Temperature Range | 20°C to 35°C | ||
Height | 82 inches | ||
Width | 26.6 inches | ||
Depth | 31 inches | ||
Total Weight | 1,925 lbs. | 1,960 lbs. | 1,995 lbs. |
For more in-depth specs, see the data sheet.
