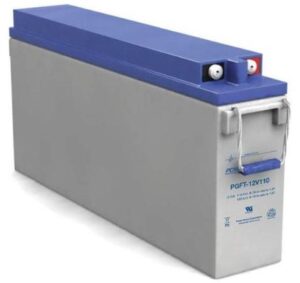

Power Sonic PGFT-12V110

The Power Sonic PGFT-12V110, 12V, 106.8Ah, front terminal rechargeable sealed lead acid battery offers ease of installation and maintenance when installed in a battery cabinet. The PG FT Series, with proven AGM technology and a thick plate design, provide a long service life in critical standby power applications including telecoms, UPS and military power systems.

Power Sonic PGFT-12V110 Features

• Absorbent Glass Mat (AGM) technology for superior performance
• Superb high-rate discharge characteristics ensures reliable performance in UPS and telecom applications
• Proven valve regulated technology that guarantees safe operation without maintenance
• Rugged impact resistant ABS case and cover (available to UL94:V-0)
• Thick plate design and efficient gas recombination yield a service life of 10 – 12 years in standby mode
• Front terminal design suited for 19″ & 21″ cabinets

Power Sonic PGFT-12V110 Specifications

Nominal Voltage: 12 volts (6 cells)
Nominal Capacity:
– 20-hr. (5.34A to 10.80 volts) – 106.8 AH
– 10-hr. (10.0A to 10.80 volts) – 100.0 AH
– 5-hr. (17.8A to 10.50 volts) – 89.0 AH
– 3-hr. (27.0A to 9.60 volts) – 81.0 AH
– 1-hr. (65.3A to 9.60 volts) – 65.3 AH
Approximate Weight: 78.5 lbs.
Internal Resistance (approx.): 4.3 milliohms
Max Short-Duration Discharge Current (10 Sec.): 1068 amperes
Shelf Life (% of nominal capacity at 68°F (20°C):
1 Month – 97%
3 Month – 91%
6 Month – 83%
Measurements:
Length: 21.46 in.
Width: 4.33 in.
Height: 9.17 in.
Total Height: 9.17 in.

Approvals

• Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
• U.L recognized
• ISO9001:2015 – Quality management systems
